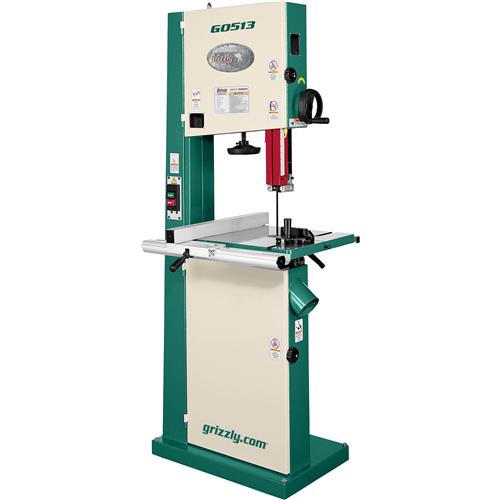

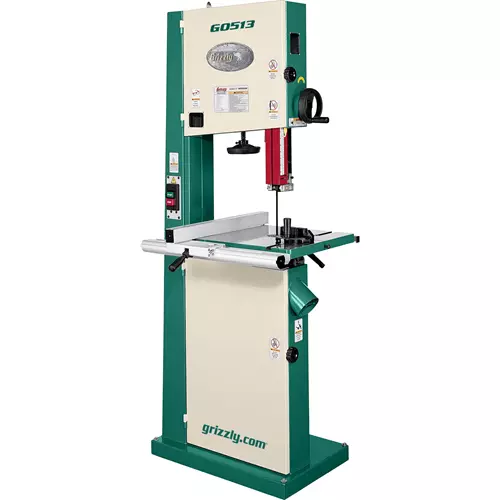

G0513 17" 2 HP Wood Bandsaw

A heavy-duty woodworking bandsaw with effective cutting capacity for DIY projects.

The fully-featured G0513 17" 2 HP Bandsaw allows for amazing sawing power in your garage or small shop.

The 2 HP motor powers through wood up to a maximum 12" cutting capacity and the 16-1/4" throat offers lots of room to move.

For a full range replacement and resaw blades for your G0513, click here.

Features including the deluxe fence, heavy-duty miter gauge, dual 4" dust ports, micro-adjusting geared table and European-style blade guides are usually found on machines costing much more.

The G0513 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your bandsaw.

Made in an ISO 9001 factory

CSA Certified

SPECIFICATIONS:

• Motor: 2 HP, 110V/220V (prewired 220V), single-phase, 20A/10A
• Cutting capacity: 16-1/4" left of blade
• Resaw capacity: 12-1/8"
• Blade size: 131-1/2" long
• Blade width range: 1/8"–1" wide
• Blade speeds: 1700, 3500 FPM
• Table size: 17" x 17" x 1-1/2" thick
• Table tilt: 10° left, 45° right
• Floor to table height: 37-1/2"
• Footprint: 27" W x 18" D
• Overall dimensions: 32" W x 32" D x 73" H
• Approximate shipping weight: 322 lbs.

FEATURES:

• Deluxe extruded-aluminum fence
• Precision-ground cast-iron table
• Euro-style roller-disc blade guides with full enclosure protection
• Sealed and permanently lubricated bearings
• Two 4" dust ports
• Quick-change blade release/tensioner
• Blade tension indicator
• Micro-adjusting geared table
• Blade height measurement scale
• Blade tracking window
• Miter gauge
• Includes 1/2" 6-TPI hook blade
• 1-year limited warranty

Note: The G0513 does not come with a plug. The recommended plug type is L5-30 for 110V or 6-15 for 220V.
