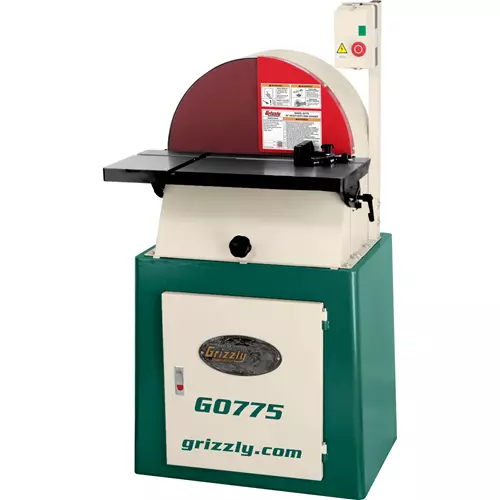

G0775 20" Heavy-Duty Disc Sander

Once the cast-iron disc gets spinning, this sander means serious business!

The G0775 20" Heavy-Duty Disc Sander features a 2 HP, 220V, 1720 RPM motor equipped with a built-in motor brake for quickly stopping the sanding disc.

The huge cast-iron table has two-axis miter slots and 0–45° tilt, which makes it possible to sand many types of materials at virtually any angle—including compound angles—with precision and control.

For convenience, this machine has a pedestal-mounted magnetic switch and a large cabinet for storing replacement sanding discs. The G0775 accepts 20" diameter PSA sanding discs, which are available in a variety of grits.

The G0775 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your sander.

Made in an ISO 9001 factory

SPECIFICATIONS:

• Motor: 2 HP, 220V, single-phase, 9.5A
• Disc size: 20"
• Disc speed: 1720 RPM
• Sandpaper backing: PSA
• Table size: 12" deep x 25-1/16" wide
• Table tilt: 0–45° R
• Floor-to-table height: 36"
• Footprint: 26-1/2" x 19"
• Overall size: 25" W x 28-1/2" D x 51-1/4" H
• Approximate shipping weight: 434 lbs.

FEATURES:

• Pedestal-mounted magnetic switch
• Accepts 20" PSA sanding discs
• Large storage cabinet
• Cast-iron table with X- and Y- miter slots
• Built-in motor brake for quick stops
• 4" Dust port
• Miter gauge

Need help?

We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the G0775 comes with a 1-year warranty.
