Item: G0454W | Model: G0454W

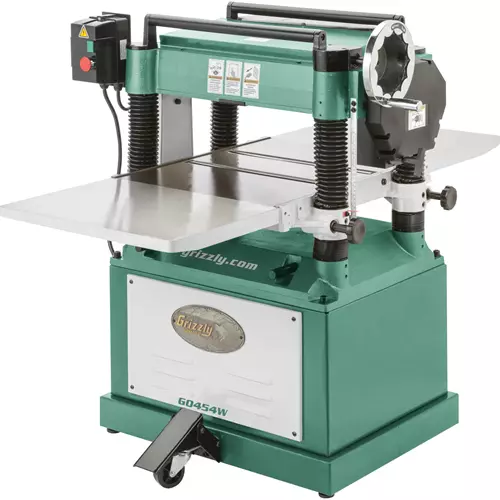

Grizzly G0454W - 20" Planer
Put one of these 20" planers in your shop without breaking the bank. Solid cast iron and steel construction and large planing capacity makes this a true heavyweight planer. However, with the foot-operated caster system, you won't need to manhandle this machine around your shop. You'll also appreciate the 56-1/2" long precision-ground table, 5HP motor, and the two-speed gear box for maximum versatility. Pound for pound, the best 20" planer value in the world!
Specifications:
Specifications:
- Motor: 5HP, 240V, single-phase, 20A
- Maximum cutting width: 20"
- Maximum stock thickness: 8"
- Minimum stock thickness: 3/16"
- Minimum stock length: 7-1/2"
- Maximum cutting depth: 1/8"
- Cutterhead diameter: 3-1/16"
- Number of knives: 4 HSS, 20" x 1" x 1/8"
- Cutterhead speed: 5000 RPM
- Feed rate: 16 & 20 FPM
- Solid serrated steel infeed roller
- Table size: 56-1/2" x 21" x 2-3/8"
- Overall size: 39-1/2"W x 56-1/2"D x 45"H
- Approximate shipping weight: 853 lbs.
- Built-in mobile base
- Precision-ground cast iron table & wings
- Board return rollers
- Adjustable bed rollers
- Magnetic switch with thermal overload protection
- Four-column support with table locks
- 5" dust port
Actions for Products including purchasing, availability and wishlist
Accessories and Related Products
Accessories & Related Products
-
-
-
-
-
Product detail tabs
Overview
Put one of these 20" planers in your shop without breaking the bank. Solid cast iron and steel construction and large planing capacity makes this a true heavyweight planer. However, with the foot-operated caster system, you won't need to manhandle this machine around your shop. You'll also appreciate the 56-1/2" long precision-ground table, 5HP motor, and the two-speed gear box for maximum versatility. Pound for pound, the best 20" planer value in the world!
Specifications:
Specifications:
- Motor: 5HP, 240V, single-phase, 20A
- Maximum cutting width: 20"
- Maximum stock thickness: 8"
- Minimum stock thickness: 3/16"
- Minimum stock length: 7-1/2"
- Maximum cutting depth: 1/8"
- Cutterhead diameter: 3-1/16"
- Number of knives: 4 HSS, 20" x 1" x 1/8"
- Cutterhead speed: 5000 RPM
- Feed rate: 16 & 20 FPM
- Solid serrated steel infeed roller
- Table size: 56-1/2" x 21" x 2-3/8"
- Overall size: 39-1/2"W x 56-1/2"D x 45"H
- Approximate shipping weight: 853 lbs.
- Built-in mobile base
- Precision-ground cast iron table & wings
- Board return rollers
- Adjustable bed rollers
- Magnetic switch with thermal overload protection
- Four-column support with table locks
- 5" dust port
