Item# T1190 Model# T1190

Grizzly T1190 - 4-3/8" Rotary Table with Tailstock and Chuck

$384.95
+$0.00  Shipping
+$0.00  Oversize

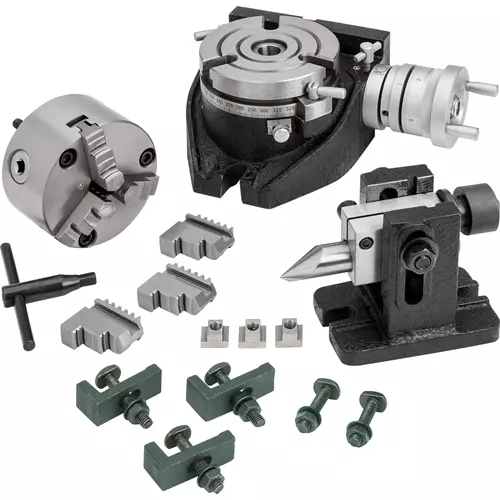

T1190 4-3/8" Rotary Table with Tailstock and Chuck

A precision rotary table with a chuck and tailstock.

A rotary table allows drilling or cutting at exact intervals around vertical and horizontal axes.

The T1190 4-3/8" Rotary Table can be used in either the horizontal or vertical position for a variety of milling applications.

These different operations include milling eccentric features, cutting arcs, create large diameter holes, and circular profiles.

Control is very accurate and precise thanks to the direct mount self-locating 3-jaw chuck, 4° table movement per handle rotation, and 20 second vernier scale.

The tailstock supports larger workpieces when the rotary table is in the vertical position, while maintaining a high level of accuracy.

Like all Grizzly rotary tables, the T1190 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.

The T1190 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your rotary table.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts for the rotary table may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

  • Worm gear ratio: 72:1
  • Table diameter: 4.375"
  • Table height: 3.82"
  • Center sleeve: MT#2
  • Weight: 31 lbs.

FEATURES:

  • Can be used in horizontal or vertical position
  • 4° movement per handle rotation
  • 5 second vernier scale
