Item# T27665 Model# T27665

Grizzly T27665 - 5 Ton Arbor Press

$809.00
+$149.00  Freight
+$0.00  Oversize

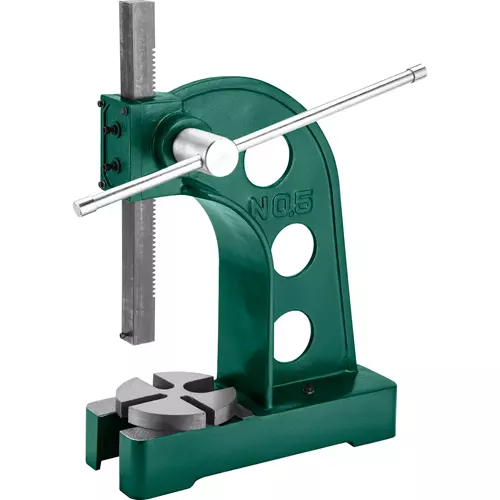

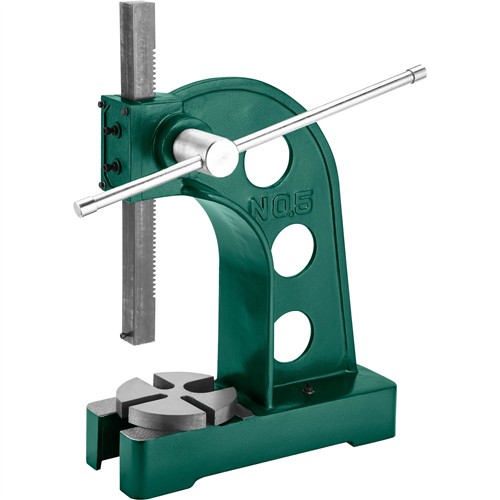

T27665 5 Ton Arbor Press

Heavy-duty cast-iron construction for any shop press need.

The T27665 5 Ton Arbor Press is designed to perform small press jobs, such as staking, riveting, and installing/removing bearings.

The reversible ram has a magnetic tool holder on one end for securing three included punch tips and accepts dies, inserts, and other tooling for custom work.

The rotating anvil can be removed for additional working height capacity, and the straight handle can be adjusted for different leverage control.

Includes bench mounting holes, three punch tips, and hex wrenches.

Like all Grizzly arbor presses, the T27665 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.

The T27665 instructions were written by our U.S. based Technical Documentation Department and is packed with useful information.

The complete and easy-to-read instructions make it easier to assemble and maintain your arbor press.

The Grizzly Customer Service and Technical Support Teams are U.S. based.

Parts and accessories for the arbor press are available online and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

  • Press capacity: 5 Tons
  • Throat depth: 12-1/4"
  • Maximum working height: 17-5/16"
  • Ram Size: 3" x 2-1/4"
  • Overall Size 12-1/4" W x 23-5/8" D x 30" H
  • Approximate shipping weight: 238 lbs.
View More Details
Add to Cart
Ready to Ship!
View Showroom Availability
Showroom Pickup Availability

Accessories

Recommended For You

Videos
Overview

T27665 5 Ton Arbor Press

Heavy-duty cast-iron construction for any shop press need.

The T27665 5 Ton Arbor Press is designed to perform small press jobs, such as staking, riveting, and installing/removing bearings.

The reversible ram has a magnetic tool holder on one end for securing three included punch tips and accepts dies, inserts, and other tooling for custom work.

The rotating anvil can be removed for additional working height capacity, and the straight handle can be adjusted for different leverage control.

Includes bench mounting holes, three punch tips, and hex wrenches.

Like all Grizzly arbor presses, the T27665 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.

The T27665 instructions were written by our U.S. based Technical Documentation Department and is packed with useful information.

The complete and easy-to-read instructions make it easier to assemble and maintain your arbor press.

The Grizzly Customer Service and Technical Support Teams are U.S. based.

Parts and accessories for the arbor press are available online and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

  • Press capacity: 5 Tons
  • Throat depth: 12-1/4"
  • Maximum working height: 17-5/16"
  • Ram Size: 3" x 2-1/4"
  • Overall Size 12-1/4" W x 23-5/8" D x 30" H
  • Approximate shipping weight: 238 lbs.
