Grizzly T27431 - 8" Plate Shear

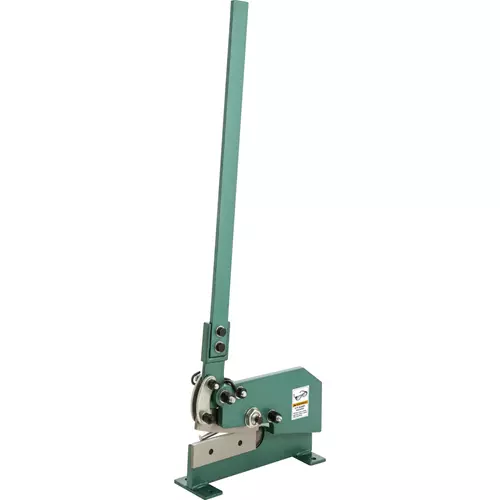

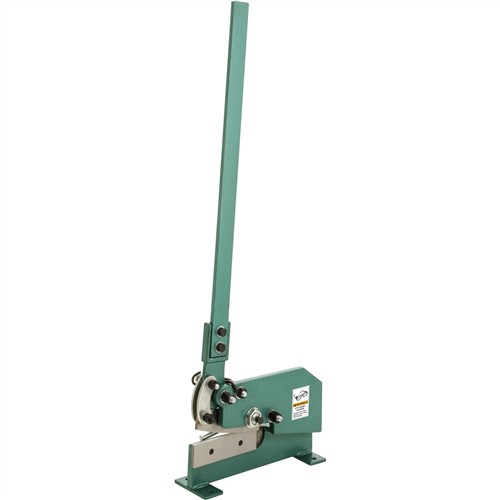

Grizzly T27431 8" Plate Shear
These bench-mounted T27431 8" Plate Shears are designed to cut flat (sheet/plate) stock and round (bar) stock of ferrous and non-ferrous metals, and even plastics.
They are simple to use and excel at making quick, clean cuts for rough cutouts.
This 8" plate shear features ground-and-hardened replaceable blades, an extra-long leverage-maximizing handle, and a spring-assisted material hold-down.
Maximum cutting length is approximately 1/2" less than blade size.
The 8" shears have a plate capacity of 3/16" and a rod capacity of 1/2".
Like all Grizzly shears, the T27431 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects. (Consumables are not covered by the warranty.)
The G0828 instruction sheet was written by our U.S. based Documentation Department is packed with useful information.
The Grizzly Technical Support team is U.S. based.
Parts and accessories for the metal shear are available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
- Blade length: 7-7/8"
- Maximum length of cut: 7"
- Mounting bolt hole diameter: 3/8"
- Maximum thickness up to 2-3/4" wide: 1/2"
- Maximum thickness at full width: 3/16"
- Maximum round stock diameter: 3/8"
- Overall dimensions: 6" W x 15" L x 41-1/2" H
- Approximate shipping weight: 53 lbs.
