Milling Machines
Item# G0727 Model# G0727

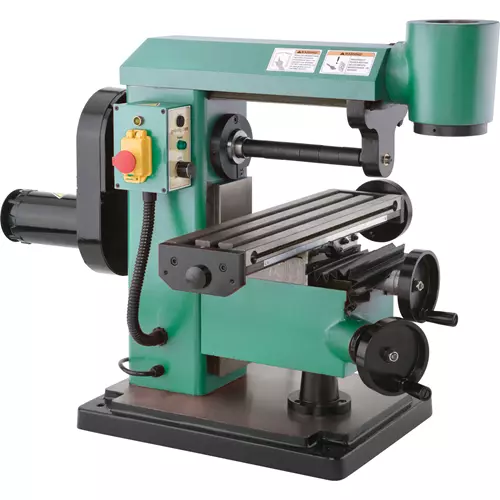

Grizzly G0727 - 5" x 18" 1/2 HP Mini Horizontal/Vertical Mill

$1,098.00
+$149.00  Freight
+$0.00  Oversize

If your work requires both horizontal and vertical milling in a small footprint, this is the machine for you! Simple conversion to horizontal and vertical milling operations means there's very little set-up time. The DC motor also provides variable spindle speeds for matching material, tooling, and finish. Heavy cast iron construction, dovetail ways, and three-axis control all combine to give you precision and versatility for any milling job.

Made in an ISO 9001 Factory

FEATURES:

  • Easily converts for either vertical or horizontal milling
  • Dovetail ways for accuracy
  • 3-Axis table movement
  • Variable-speed spindle
  • Emergency stop button
  • Heavy-duty cast iron construction
  • Compact design mounts to workbench or stand
  • Made in an ISO 9001 factory

    SPECIFICATIONS:

  • Motor: 1/2 HP, DC, 110V, single-phase
  • Spindle taper: R-8
  • T-slots: 3 @ 1.33" centers, 7/16" wide
  • Head tilt: 45° L/R
  • Max. distance spindle to table: 6-1/2"
  • Table travel (longitudinal): 11-7/8"
  • Table travel (cross): 3-11/16"
  • Table size: 4-3/4" x 18-1/8"
  • Range of speeds: Variable, 200–2000 RPM
  • Approximate shipping weight: 268 lbs.
    • View More Details
    Add to Cart
    Ready to Ship!
    View Showroom Availability
    Showroom Pickup Availability

    Product Resources

    Specification Sheet - PDF Manual - PDF Parts List - PDF Buy Parts

    Accessories

    Recommended For You

    Overview Comparisons Reviews Documents
    Overview

    If your work requires both horizontal and vertical milling in a small footprint, this is the machine for you! Simple conversion to horizontal and vertical milling operations means there's very little set-up time. The DC motor also provides variable spindle speeds for matching material, tooling, and finish. Heavy cast iron construction, dovetail ways, and three-axis control all combine to give you precision and versatility for any milling job.

    Made in an ISO 9001 Factory

    FEATURES:

  • Easily converts for either vertical or horizontal milling
  • Dovetail ways for accuracy
  • 3-Axis table movement
  • Variable-speed spindle
  • Emergency stop button
  • Heavy-duty cast iron construction
  • Compact design mounts to workbench or stand
  • Made in an ISO 9001 factory

    SPECIFICATIONS:

  • Motor: 1/2 HP, DC, 110V, single-phase
  • Spindle taper: R-8
  • T-slots: 3 @ 1.33" centers, 7/16" wide
  • Head tilt: 45° L/R
  • Max. distance spindle to table: 6-1/2"
  • Table travel (longitudinal): 11-7/8"
  • Table travel (cross): 3-11/16"
  • Table size: 4-3/4" x 18-1/8"
  • Range of speeds: Variable, 200–2000 RPM
  • Approximate shipping weight: 268 lbs.
