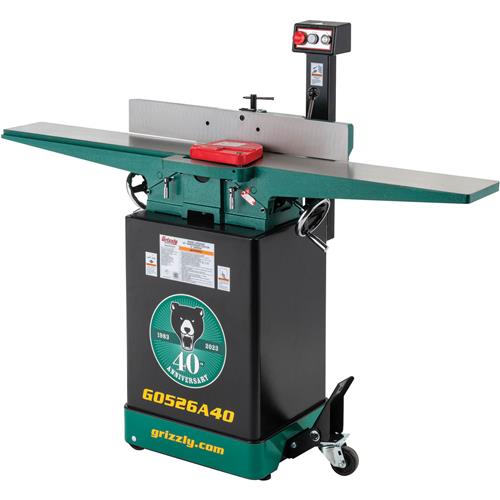

G0526A40 40th Anniversary Edition 6" Jointer

Handle longer workpieces with this limited-edition jointer.

Reviving a classic, the G0526A40 offers a custom paint scheme and custom features its predecessor did not have. The eye-catching black on green color scheme combined with chromed handwheels will make it stand out in your shop.

The 4-row, 6" V-helical cutterhead features 24 angled, indexable carbide inserts that can each be rotated up to three times to expose a new sharp edge. You’ll get quieter operation, and most importantly, a significantly better finish with less tear-out than spiral and straight-knife cutterheads.

Table length is everything when it comes to jointers. This has a full 60-inches of precision-ground cast-iron support for your largest workpieces. The precision-ground cast-iron infeed and outfeed tables move on dovetail ways for smooth and accurate table adjustments.

For increased mobility, the cabinet stand comes with a built-in mobile base. Engage the foot pedal caster to move your machine around. Lock the machine down when you are ready to work.

The fence stops simplify the task of adjusting the fence to 45°, 90°, and 135° (45° outward).

The T24736 replacement inserts are available when the stock inserts get dull.

The G0526A40 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects.

The G0526A40 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information.

The Grizzly Customer Service and Technical Support Teams are also U.S.-based.

Parts for the jointer may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

SPECIFICATIONS:

• Motor: 1-1/2 HP, 110V or 220V, single-phase, 18A/9A
• Maximum width of cut: 6"
• Maximum depth of cut: 1/8"
• Maximum rabbeting depth: 1/2"
• Minimum stock length: 8"
• Minimum stock width: 3/4"
• Minimum stock thickness: 1/2"
• Cutterhead diameter: 2-1/2"
• Cutterhead type: 4-row V-helical
• Insert size, type: 15mm x 15mm x 2.5mm, indexable carbide
• Cutterhead speed: 4800 RPM
• Table size: 7-1/4" x 60"
• Fence size: 29-1/4" L x 4" H
• Dust port size: 4"
• Overall dimensions: 60" W x 20-1/2" D x 40-1/2" H
• Approximate shipping weight: 307 lbs.

FEATURES:

• 4-Row V-helical cutterhead with 24 indexable carbide inserts
• Cabinet stand with built-in mobile base
• Pedestal-mounted power switch
• Precision-ground cast-iron tables measure 60"-long
• Rabbeting outfeed table
• Precision gib adjustment on dovetailed ways
• Heavy-duty center-mounted fence with stops at 45°, 90°, and 135°

Dual voltage available on machines manufactured after 03.23
