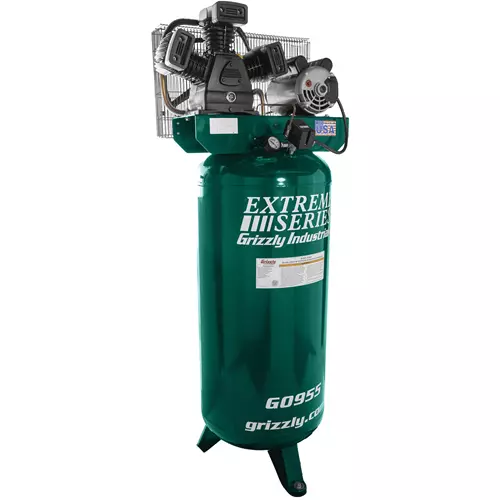

G0955 60-Gallon 5 HP Extreme Series Air Compressor
Extreme Series means high-output performance for maximum air requirements.
The Grizzly G0955 60-Gallon 5 HP Extreme Series Compressor operates at low RPMs for extended life and low maintenance. The 5 HP 230V motor operates with a maximum pressure of 150 PSI. This compressor delivers 18 CFM at 90 PSI and 20 CFM at 40 PSI.
Providing more complete motor overload protection than a magnetic starter that only senses current, the motor senses both temperature and current. A wired-formed belt guard provides more efficient cooling to keep the unit from overheating.
The 60-gallon vertical air tank has been ASME certified to meet safety and quality standards. The one-stage cast-iron oil-lubricated pump operates at high pressure providing increased volume when you need it.
Additional features include a tank pressure gauge, on/off switch, 1/2" NPT threaded fitting, and an easily accessible oil level sight glass.
Like all Grizzly air compressors, the G0955 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.
The Grizzly Customer Service and Technical Support Teams are U.S.-based. To order parts, or other services and inquiries, contact Mega Compressor at (832) 415-6995.
SPECIFICATIONS:
- Motor: 5 HP, 230V, single-phase, 22.5A
- Airflow capacity: 18 CFM at 90 PSI and 20 CFM at 40 PSI
- Maximum air pressure: 150 PSI
- Overall size: 30" W x 22" D x 68" H
- Approximate shipping weight: 345 lbs.
FEATURES:
- Large oil level sight glass
- Ball-valve drain and output control
- Wired-formed belt guard for more efficient cooling
- Fan pulley and cooling fin design to keep compressor cool
- W-cylinder cast-iron air compressor pump
- Made and assembled in the USA with global parts
- ASME-certified 60-gallon tank
