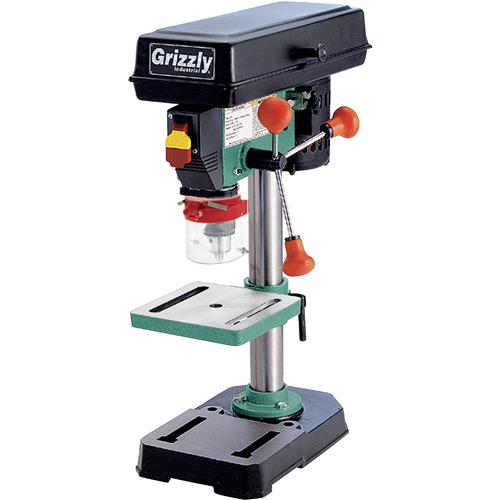

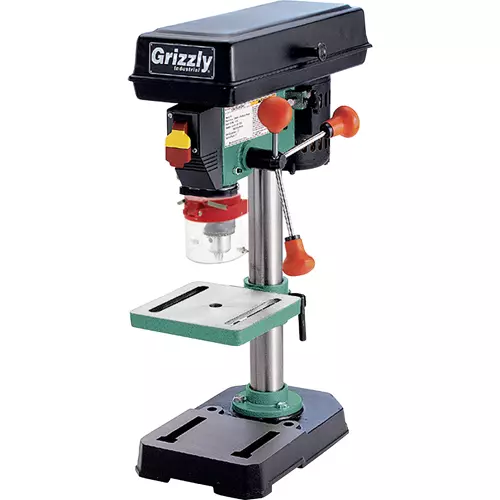

Grizzly G7942 - 8" Baby Benchtop Drill Press & Forstner Bit Bundle

Grizzly G7942 8" Baby Benchtop Drill Press with D3655 7 pc. Forstner Bit Set!

A fantastic, compact solution and great for miniature work!

Perfect for the small shop, the G7942 8" Baby Benchtop Drill Press won't get in your way when things get cramped. Constructed of cast-iron and only weighing in at 39 lbs., you can easily put it away on a shelf when finished.

The 1/3 HP motor smoothly and quietly powers the 5-speed drill press from 620 - 3100 RPM. With a max drill capacity of 1/2" through cast iron or mild steel, it can easily drill through fiberglass, plastic and composites.

The JT33 keyed drill chuck is fitted to the JT33 spindle taper. The chuck accepts drill bits as small as 1/64" to 1/2" to meet the needs of your various projects. The spindle has a 2" of travel as indicated by the depth gauge conveniently mounted on the headstock.

The precision-ground cast iron table is 6-1/2" square and tilts 90° left and right. It swivels 360° around the steel column and has two 5/8" T-slots, 5" on center.

Like all Grizzly drill presses, the G7942 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)

The G7942 manual was written by our U.S. based Technical Documentation Department and is packed with useful information.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the drill press are available on-line and shipped from the Grizzly parts warehouse in Springfield, MO.

Made in and ISO 9001 factory

SPECIFICATIONS:

  • Motor: 1/3 HP, 110V, single-phase, 2A
  • Swing: 8"
  • Spindle taper: JT33
  • Spindle travel: 2"
  • Spindle speeds: 5 (620, 1100, 1720, 2340, 3100 RPM)
  • Drill chuck: 1/64" - 1/2", B16, keyed
  • Drilling capacity: 1/2" steel
  • Max. distance spindle to table: 9-1/4"
  • Table dimensions: 6-1/2" x 6-1/2"
  • Table tilt: 90° left & right
  • Table swivel around column: 360°
  • T-slots: (x2) 5/8, 5" on center
  • Distance from spindle to base: 12-3/4"
  • Footprint: 12-1/2" x 8"
  • Overall height: 23"
  • Approximate shipping weight: 45 lbs.


  • Free item wil not appear in cart but will be added to order
