Item: G0730 | Model: G0730

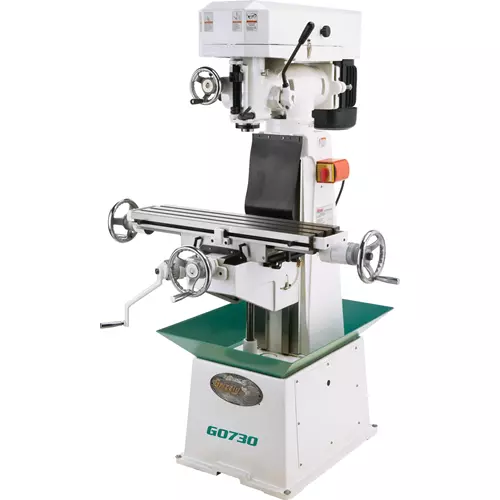

Grizzly G0730 - 8" x 30" Vertical Mill
This 8" x 30" Vertical Milling Machine includes all the same features as its 6" x 26" little brother (G0728/G0729), but is constructed with a heavy, one-piece casting for even greater rigidity and an extra 300 pounds of mass. It also accommodates up to a 14" swing and 20" between table and spindle. Features a built-in drain and cabinet designed to accept aftermarket coolant systems, making it readily upgradable. Available with or without longitudinal power feed.
FEATURES: Dovetail sliding ways for accuracy One-shot oiler lubrication system Catch tray and drain allows for coolant system upgrade Large stroke handle Forward/Reverse switch Rotating turret-style column Head tilts side-to-side Precision-ground table Coarse and fine downfeed controls Adjustable downfeed stop system
SPECIFICATIONS: Motor: 1-1/2 HP, 110V/220V, prewired 110V, 1725 RPM Power transfer: V-belt drive Spindle taper: R-8 Spindle travel: 3-1/2" Max. distance spindle to table: 20" Max. distance spindle to column: 7" T-Slots: 3 @ 2-3/16" on center, 1/2" wide Table size: 30" L x 8" W Table travel (longitudinal): 18" Table travel (cross): 7-3/4" Knee travel: 17-3/4" Max. drilling capacity for cast iron: 1" Head tilt: 45° left/right Number of speeds: 9 Speeds: 270, 420, 490, 950, 1110, 1410, 1720, 2050 and 3200 RPM Overall dimensions:
40-1/2" W x 67" H x 42-3/4" D Approximate shipping weight: 964 lbs.
FEATURES:
SPECIFICATIONS:
Actions for Products including purchasing, availability and wishlist
Accessories and Related Products
Accessories & Related Products
-
-
-
-
-
Product detail tabs
Overview
This 8" x 30" Vertical Milling Machine includes all the same features as its 6" x 26" little brother (G0728/G0729), but is constructed with a heavy, one-piece casting for even greater rigidity and an extra 300 pounds of mass. It also accommodates up to a 14" swing and 20" between table and spindle. Features a built-in drain and cabinet designed to accept aftermarket coolant systems, making it readily upgradable. Available with or without longitudinal power feed.
FEATURES: Dovetail sliding ways for accuracy One-shot oiler lubrication system Catch tray and drain allows for coolant system upgrade Large stroke handle Forward/Reverse switch Rotating turret-style column Head tilts side-to-side Precision-ground table Coarse and fine downfeed controls Adjustable downfeed stop system
SPECIFICATIONS: Motor: 1-1/2 HP, 110V/220V, prewired 110V, 1725 RPM Power transfer: V-belt drive Spindle taper: R-8 Spindle travel: 3-1/2" Max. distance spindle to table: 20" Max. distance spindle to column: 7" T-Slots: 3 @ 2-3/16" on center, 1/2" wide Table size: 30" L x 8" W Table travel (longitudinal): 18" Table travel (cross): 7-3/4" Knee travel: 17-3/4" Max. drilling capacity for cast iron: 1" Head tilt: 45° left/right Number of speeds: 9 Speeds: 270, 420, 490, 950, 1110, 1410, 1720, 2050 and 3200 RPM Overall dimensions:
40-1/2" W x 67" H x 42-3/4" D Approximate shipping weight: 964 lbs.
