Item# G9760 Model# G9760

Grizzly G9760 - HSS TiN Coated 2 and 4 Flute End Mills, 20 pc. Set

$178.75
+$0.00  Shipping
+$0.00  Oversize

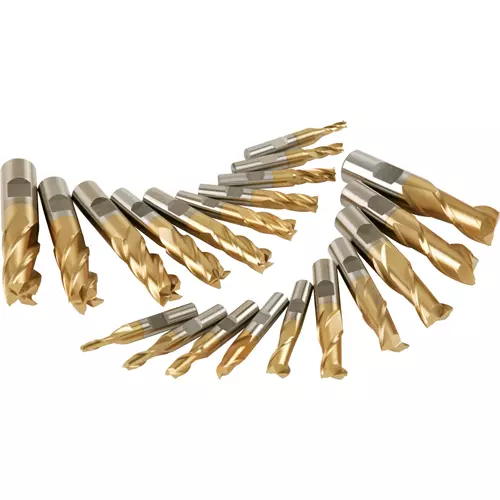

G9760 20-Piece HSS TiN Coated 2 and 4 Flute End Mills Set

A set of long-life titanium nitride coatings on both 2 and 4 flute end mills.

The G9760 20-Piece HSS TiN Coated Flute End Mills Set is a complete set for removing metal during milling operations.

These two and four flute, square end mills are used for end milling, side milling, and plunge milling operations.

Flute volume is more with two flute mills, but the feed rates are lower.

Flute volume is less with four flute mills, but the feed rate can be higher than two flutes.

The fewer number of flutes allows for better chip evacuation.

TiN coated mills last up to six times longer than uncoated mills. They also run cooler and can be ran at higher speeds than uncoated HHS mills.

HSS (high-speed steel) has been heat treated for hardness and wear resistance, which keeps a sharp edge longer than other carbon steels.

The set is housed in a molded plastic case.

Like all Grizzly end mills, the G9760 comes with a 1-year warranty which assures the set is free from factory defects.

The Grizzly Customer Service and Technical Support Teams are U.S. based.

SPECIFICATIONS:

  • Material: TiN coated high-speed steel
  • Flutes: 2 and 4
  • Sizes: 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4"
