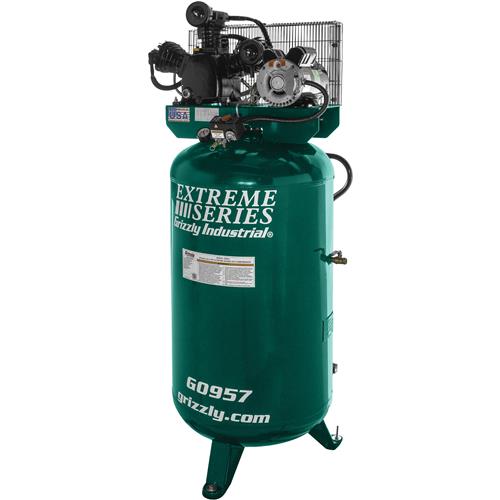

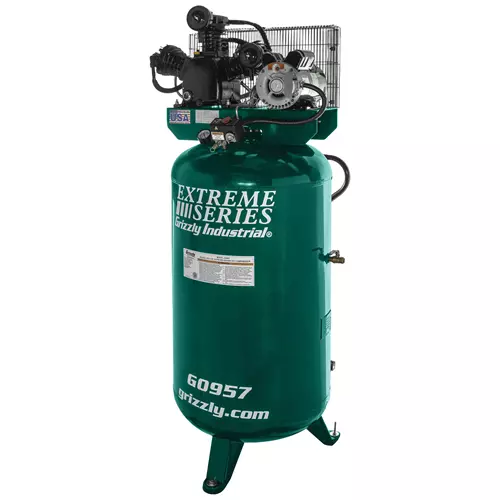

G0957 80-Gallon 5 HP Extreme Series Air Compressor
An 80-gallon compressor offering high-output performance for maximum air requirements.
The Grizzly G0957 80-Gallon 5 HP Extreme Series Air Compressor is for commercial and industrial use and operates with a maximum pressure of 175 PSI. This compressor delivers 18.5 CFM at 90 PSI and 24 CFM at 40 PSI.
Two-stage air compressors offer cooler operation, higher pressure and flow, reduced wear and tear, and often quieter operation compared to single-stage models of similar size.
Providing more complete motor overload protection than a magnetic starter that only senses current, the motor senses both temperature and current.
The fan pulley and cooling fin design provide more efficient cooling to keep the unit from overheating.
The 80-gallon vertical air tank has been ASME certified to meet safety and quality standards. The two-stage cast-iron oil-lubricated pump operates at high pressure providing increased volume when you need it.
Additional features include a tank pressure gauge, on/off switch, 1/2" NPT threaded fitting, easily accessible oil level sight glass, and oil drain with 4” extension.
SPECIFICATIONS:
- Motor: 5 HP, 230V, single-phase, 22.5A
- Tank size: 80-Gallon
- Airflow capacity: 18.5 CFM at 90 PSI and 24 CFM at 40 PSI
- Maximum air pressure: 175 PSI
- Overall size: 32" W x 26" D x 68" H
- Approximate shipping weight: 400 lbs.
FEATURES:
- Two-stage compressors deliver higher pressure and greater flow
- Large oil level sight glass
- Ball-valve drain and output control
- Fan pulley and cooling fin design to keep compressor cool
- W-cylinder cast-iron air compressor pump
- Made and assembled in the USA with global parts
- ASME certified 80-gallon tank
Grizzly air compressors, including the G0957, come with a 1-year warranty which covers parts and assures the unit is free from factory defects.
The Grizzly Customer Service and Technical Support Teams are U.S. based. To order parts, or other services and inquiries, contact Mega Compressor at (832) 415-6995.
