Item: G9903 | Model: G9903

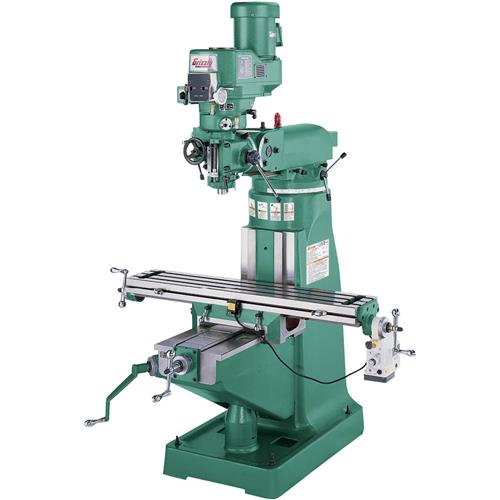

Grizzly G9903 - 9" x 49" Vertical Mill w/ Power Feed, 3-Phase VS
Need a little more table space? Try this 9" x 49" turret type knee mill. It has all the same great features as its little brother but it has the added table length necessary for those longer parts. This mill is an exceptional value. And of course with 2 HP, large slide surfaces and heavy castings, this milling machine will perform with amazing rigidity through some of the toughest jobs.
Features:One-shot Pump Lubrication Auto Down Feed Quill Feeds/Spindle Rev.: 0.0019", 0.0035", 0.0058" Auto Stop w / Micro Adjustable Stop R-8 Spindle Longitudinal Power Feed Hardened & Ground Table Surface Chrome Plated, Precision Ground Quill Adjustable Micrometer Quill Depth Stop
Variable-Speed Head Specifications: Motor: 2 HP, 220V/440V*, 3-phase, TEFC Induction, prewired to 220V Spindle travel: 5" Table size: 9" x 49" Table travel (longitudinal): 27" Table travel (cross): 12-1/2" Max. distance spindle to table: 18" Max. distance spindle to column: 20" Knee travel: 16" Head tilt: 45° both ways Head swivel: 90° both ways T-slots: 3 on 2-1/2" centers, 5/8" wide Speeds: Variable Range of speeds: 70–4200 RPM Approximate shipping weight: 2468 lbs.
Features:
Variable-Speed Head Specifications:
Actions for Products including purchasing, availability and wishlist
Accessories and Related Products
Accessories & Related Products
-
-
-
-
-
Product detail tabs
Overview
Need a little more table space? Try this 9" x 49" turret type knee mill. It has all the same great features as its little brother but it has the added table length necessary for those longer parts. This mill is an exceptional value. And of course with 2 HP, large slide surfaces and heavy castings, this milling machine will perform with amazing rigidity through some of the toughest jobs.
Features:One-shot Pump Lubrication Auto Down Feed Quill Feeds/Spindle Rev.: 0.0019", 0.0035", 0.0058" Auto Stop w / Micro Adjustable Stop R-8 Spindle Longitudinal Power Feed Hardened & Ground Table Surface Chrome Plated, Precision Ground Quill Adjustable Micrometer Quill Depth Stop
Variable-Speed Head Specifications: Motor: 2 HP, 220V/440V*, 3-phase, TEFC Induction, prewired to 220V Spindle travel: 5" Table size: 9" x 49" Table travel (longitudinal): 27" Table travel (cross): 12-1/2" Max. distance spindle to table: 18" Max. distance spindle to column: 20" Knee travel: 16" Head tilt: 45° both ways Head swivel: 90° both ways T-slots: 3 on 2-1/2" centers, 5/8" wide Speeds: Variable Range of speeds: 70–4200 RPM Approximate shipping weight: 2468 lbs.
Features:
Variable-Speed Head Specifications:
