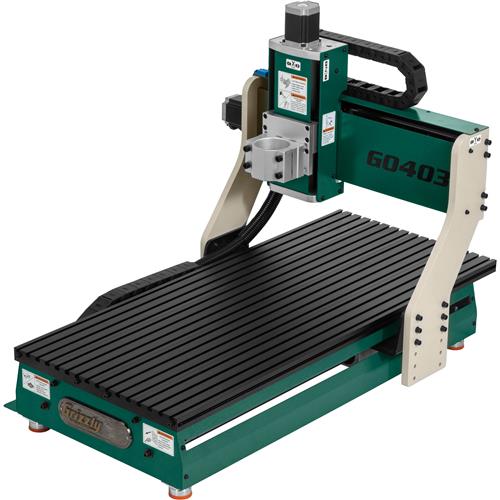

G0403 Benchtop CNC Router

Bring your creative visions to life with precision and ease.

Transform your ideas into reality with a powerful and accessible CNC designed to empower hobbyists, educators, and small businesses alike.

Whether you're crafting personalized gifts, teaching the next generation of makers, or prototyping your latest invention, the G0403 delivers the accuracy, versatility, and ease of use you need to turn your dreams into tangible projects.

For Hobbyists & Makers:

• Create: Personalized items like signs, engraved gifts, wood carvings, and more.
• Explore: Experiment with different materials and techniques.

For Educators:

• Teach: Provide practical CNC technology education.
• Prepare: Introduce in-demand skills in manufacturing and technology.

Experience the next level of precision and performance with the G0403. From its robust design to its innovative features, every detail is engineered to enhance your creative process:

• Maximize Productivity: The 15-3/4" x 36" table is designed to balance a useful work area with efficient benchtop use, minimizing setup changes.
• Heavy-Duty Construction: Rigid steel gantry & frame, anodized aluminum table for cleaner, consistent cuts.
• Handheld Controller: Simplified operation with one-button tool touch-off, quick origin setting, G-code breakpoint function, file library, and 8 programmable work offsets.
• Automatic Tool Setter: Speed up setup time and minimize the risk of tool collisions with a one-button tool setting function.
• Ball Screw Drives: X, Y, and Z-axes with linear guides ensure smooth and accurate axis movements.

Advanced DSP-J2 Control:

The compact DSP-J2 system delivers precision and efficiency. It features a 3.5" LCD for clear data, an MPG pendant for fine adjustments, and a magnetic back for easy placement. USB and internal memory enable seamless file transfer and offline operation. Stay current with USB software updates, and minimize downtime with power-loss recovery. The G-code teach function allows direct program creation from the handheld device, making this small system highly capable. Small in size, big in capability—the DSP-J2 is built to perform.

The G0403 comes with a 68mm spindle mount ready for your personal handheld router or spindle. If being used for production use, an upgrade with the optional T34438 2 HP Water Cooled Spindle Kit is available.

To cut multi-dimensional projects like cylindrical objects, carvings around curves, and more, the optional T34439 Rotary 4th-Axis is available.

SPECIFICATIONS:

• Required power source: 110V, single-phase, min. 15A circuit
• X-, Y-, Z-, A-axis motors: NEMA 23, steppe, 5A
• Axis travel: 13" x 25-9/16" x 7-1/16"
• Rapid speed: 118 IPM
• Supported G-code file extensions: .tap, .nc
• Collet size: 1/16", 1/8", 1/4"
• Collet type: ER11
• Table dimensions: 15-3/4" x 36"
• Footprint: 33-1/2" x 16-1/2"
• Overall dimensions: 24" W x 36-1/2" D x 27" H
• Approximate shipping weight: 221 lbs.

INCLUDES:

• V-Carve desktop software
• 65mm Spindle mount
• Touch plate
• M6 Clamping kit

Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information.

Need help? We offer U.S.-based customer service and technical support to help keep your equipment running in top condition. The G0403 comes with a 1-year warranty.

Check to make sure you controller has the latest software update.

Made in an ISO 9001 factory
