Item# G0816 Model# G0816

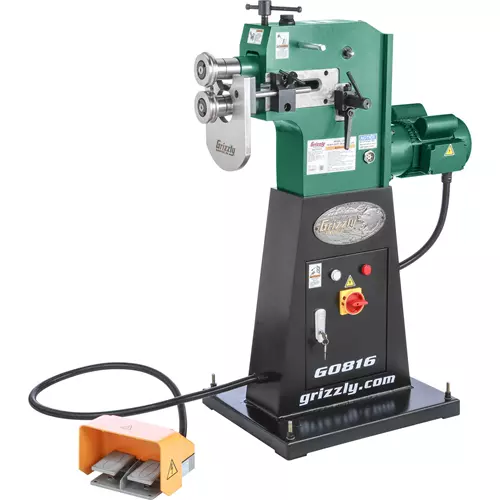

Grizzly G0816 - Heavy-Duty Bead Roller

$3,350.00
+$129.00  Freight
+$0.00  Oversize
Roll through heavy gauge sheet metal projects all day long with our G0816 Heavy-Duty Bead Roller. With a maximum capacity of 12-gauge aluminum or 14-gauge mild steel, this roller helps ensure you get the right bead the first time. Features top-mounted, one-hand height controls and an 11-1/2" throat capacity with adjustable back-plate to help you produce straight lines on a wide range of projects. Securing each roller mandrel is a heavy-duty 30mm shaft for any of our great tooling options. This bead roller is also remotely operated with a foot pedal, allowing you to keep rolling while supporting large workpieces, and the steel stand with oversized footprint provides an ultra-solid foundation to ensure precise, reliable results, even when rolling large, heavy pieces.

Specifications:

  • Motor: 1 HP, 220V, single phase, 5A
  • Power transfer: Gear drive
  • Maximum thickness (mild steel): 14 Ga
  • Maximum thickness (aluminum): 12 Ga
  • Throat depth: 11-1/2"
  • Shaft diameter: 30mm
  • Overall size: 22-1/2" W x 44" H x 34" D
  • Footprint: 18" x 22-1/2"
  • Approximate shipping weight: 455 lbs.
Features:
  • Hands-free operation with foot pedal control
  • 12-Gauge aluminum capacity
  • 14-Gauge mild steel capacity
  • Adjustable throat depth
  • Adjustable backplate
  • Heavy-duty steel body and stand
  • 11-1/2" throat capacity for workpieces up to 23" wide
  • One-hand mandrel height adjustment
  • Ball oiler lubrication
  • Locking electrical cabinet
  • Includes 1/2" bead mandrel set and wrench
View More Details
Add to Cart
Available to Ship

Recommended For You

Overview
Roll through heavy gauge sheet metal projects all day long with our G0816 Heavy-Duty Bead Roller. With a maximum capacity of 12-gauge aluminum or 14-gauge mild steel, this roller helps ensure you get the right bead the first time. Features top-mounted, one-hand height controls and an 11-1/2" throat capacity with adjustable back-plate to help you produce straight lines on a wide range of projects. Securing each roller mandrel is a heavy-duty 30mm shaft for any of our great tooling options. This bead roller is also remotely operated with a foot pedal, allowing you to keep rolling while supporting large workpieces, and the steel stand with oversized footprint provides an ultra-solid foundation to ensure precise, reliable results, even when rolling large, heavy pieces.

Specifications:

  • Motor: 1 HP, 220V, single phase, 5A
  • Power transfer: Gear drive
  • Maximum thickness (mild steel): 14 Ga
  • Maximum thickness (aluminum): 12 Ga
  • Throat depth: 11-1/2"
  • Shaft diameter: 30mm
  • Overall size: 22-1/2" W x 44" H x 34" D
  • Footprint: 18" x 22-1/2"
  • Approximate shipping weight: 455 lbs.
Features:
  • Hands-free operation with foot pedal control
  • 12-Gauge aluminum capacity
  • 14-Gauge mild steel capacity
  • Adjustable throat depth
  • Adjustable backplate
  • Heavy-duty steel body and stand
  • 11-1/2" throat capacity for workpieces up to 23" wide
  • One-hand mandrel height adjustment
  • Ball oiler lubrication
  • Locking electrical cabinet
  • Includes 1/2" bead mandrel set and wrench
