Item: G4814 | Model: G4814

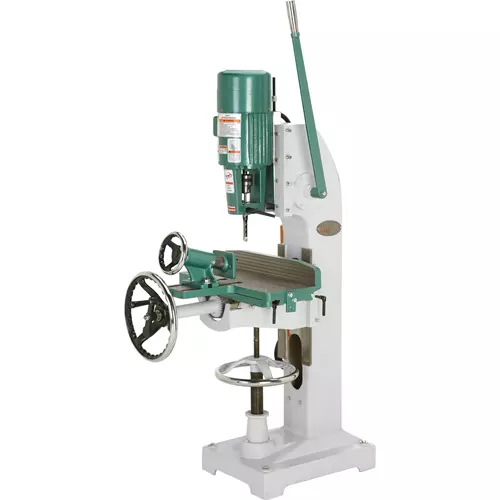

Image for G4814
This Industrial Hollow Chisel Mortiser features a mighty 2 speed, 2 HP, 220V, three-phase motor capable of plowing through thick pieces of hardwood all day long without bogging down. Extremely versatile, the universal compound table provides generous vertical, cross, angle and longitudinal travel. This mortiser's combination of price, power and versatility makes it the standard for all others to follow.

Specifications:

  • Motor: 2 HP, 220V, 3-phase, 2-speed
  • Universal compound style table
  • Table tilts 30° right or left for angle mortises
  • Hand operated table clamp holds stock firmly in position
  • Chisel range: 1/4" to 1-1/8"
  • Table size: 16-3/4" x 21-1/4"
  • Table cross travel: 5"
  • Table longitudinal travel: 18"
  • Table vertical travel: 12"
  • Head drive: Manual
  • Clamp drive: Manual
  • Chuck capacity: 1/2"
  • Spindle speeds: 1725 & 3450 RPM
  • Maximum stock width: 12"
  • Maximum mortising depth: 4"
  • Includes 5/8" and 3/4" chisel sleeves
  • Approximate shipping weight: 546 lbs.
  • Includes three mortising chisels in sizes 1/4", 3/8" & 1/2"
View More Details

Accessories

Image for T10016 1/4" Premium Mortising Chisel Item# T10016 $64.95 Add Image for G5841 Static Phase Converter - 1 to 4 HP Item# G5841 $340.00 Add Image for G5562 Slipit, Silicone-Free Sliding Compound Gel 1 qt. Item# G5562 $28.95 Add Image for T10019 1/2" Premium Mortising Chisel Item# T10019 $85.95 Add Image for T10020 5/8" Premium Mortising Chisel Item# T10020 $96.95 Add
Shop All Accessories
Overview Specifications & Comparisons Specification Sheet Manual Parts List Buy Parts
Overview
This Industrial Hollow Chisel Mortiser features a mighty 2 speed, 2 HP, 220V, three-phase motor capable of plowing through thick pieces of hardwood all day long without bogging down. Extremely versatile, the universal compound table provides generous vertical, cross, angle and longitudinal travel. This mortiser's combination of price, power and versatility makes it the standard for all others to follow.

Specifications:

  • Motor: 2 HP, 220V, 3-phase, 2-speed
  • Universal compound style table
  • Table tilts 30° right or left for angle mortises
  • Hand operated table clamp holds stock firmly in position
  • Chisel range: 1/4" to 1-1/8"
  • Table size: 16-3/4" x 21-1/4"
  • Table cross travel: 5"
  • Table longitudinal travel: 18"
  • Table vertical travel: 12"
  • Head drive: Manual
  • Clamp drive: Manual
  • Chuck capacity: 1/2"
  • Spindle speeds: 1725 & 3450 RPM
  • Maximum stock width: 12"
  • Maximum mortising depth: 4"
  • Includes 5/8" and 3/4" chisel sleeves
  • Approximate shipping weight: 546 lbs.
  • Includes three mortising chisels in sizes 1/4", 3/8" & 1/2"
