Item: C1409Z | Model: C1409Z

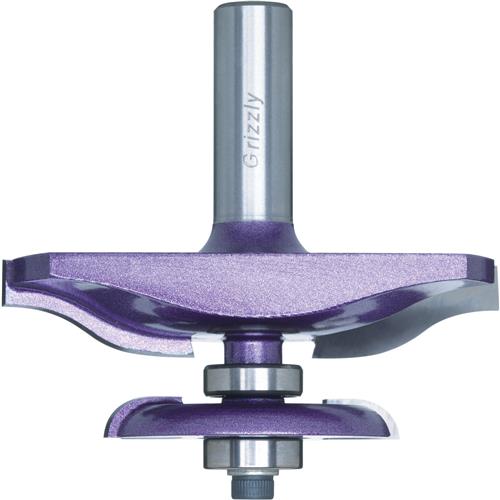

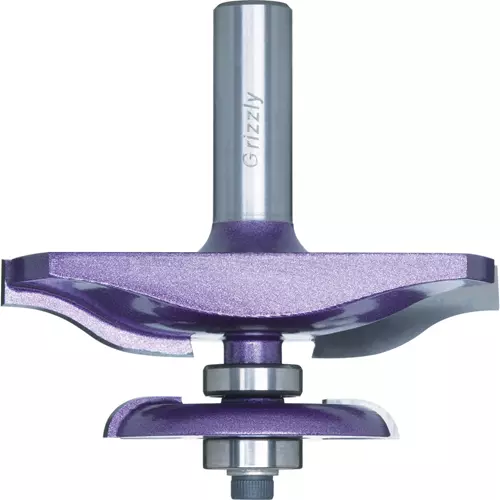

Grizzly C1409Z - Ogee 3" Raised Panel Bit, 1/2" Shank
5.0 (1)
Rated 5.0 out of 5 stars, based on 1 reviews
Pricing Information
$46.37
Price: $46.37
MSRP:
$71.95
Original Price: $71.95
You Save:
$25.58
(36%)
Savings: $25.58
This Panel Boring bit can be used with 5/8" - 3/4" stock. Features a shear angle, an anti-friction coating, and a guide bearing. Undercutter lets you produce flush panels. A 10 degree upshear removes material fast! Produces a 1" reveal. Assembly comes complete with end-mounted bearing. We suggest using a 3 HP router with a router table. 2mm thick carbide!
Model C1409Z Dimensions:
Sometimes you want the best money can buy; sometimes your project requires you to use the best router bits made. If so, this router bit fits the bill! Starting with a better quality steel for the bodies (SAE4140), we heat treat it to the appropriate hardness and apply K10 micro grain carbide. We then precision grind the blades to 800 grit (using the wet grinding process) so that it is razor sharp and then finish it with a baked-on metallic paint. This router bit is made for us and to our exacting specifications in an ISO 9001 rated factory. The purple color used on our Super-Duty Router Bits is a registered trademark and is owned by Grizzly Industrial.
Order G3854 replacement bearing.
Model C1409Z Dimensions:
- Cutter Diameter: 3-1/8"
- Cutting Height: 9/16"
- Overall Length: 3"
- Cutting Width: 1-1/4"
- Max RPM: 12,000
Sometimes you want the best money can buy; sometimes your project requires you to use the best router bits made. If so, this router bit fits the bill! Starting with a better quality steel for the bodies (SAE4140), we heat treat it to the appropriate hardness and apply K10 micro grain carbide. We then precision grind the blades to 800 grit (using the wet grinding process) so that it is razor sharp and then finish it with a baked-on metallic paint. This router bit is made for us and to our exacting specifications in an ISO 9001 rated factory. The purple color used on our Super-Duty Router Bits is a registered trademark and is owned by Grizzly Industrial.
Order G3854 replacement bearing.
Actions for Products including purchasing, availability and wishlist
Shipping
Delivery Options Loading...
Accessories and Related Products
Accessories & Related Products
-
-
-
-
-
Product detail tabs
Overview
This Panel Boring bit can be used with 5/8" - 3/4" stock. Features a shear angle, an anti-friction coating, and a guide bearing. Undercutter lets you produce flush panels. A 10 degree upshear removes material fast! Produces a 1" reveal. Assembly comes complete with end-mounted bearing. We suggest using a 3 HP router with a router table. 2mm thick carbide!
Model C1409Z Dimensions:
Sometimes you want the best money can buy; sometimes your project requires you to use the best router bits made. If so, this router bit fits the bill! Starting with a better quality steel for the bodies (SAE4140), we heat treat it to the appropriate hardness and apply K10 micro grain carbide. We then precision grind the blades to 800 grit (using the wet grinding process) so that it is razor sharp and then finish it with a baked-on metallic paint. This router bit is made for us and to our exacting specifications in an ISO 9001 rated factory. The purple color used on our Super-Duty Router Bits is a registered trademark and is owned by Grizzly Industrial.
Order G3854 replacement bearing.
Model C1409Z Dimensions:
- Cutter Diameter: 3-1/8"
- Cutting Height: 9/16"
- Overall Length: 3"
- Cutting Width: 1-1/4"
- Max RPM: 12,000
Sometimes you want the best money can buy; sometimes your project requires you to use the best router bits made. If so, this router bit fits the bill! Starting with a better quality steel for the bodies (SAE4140), we heat treat it to the appropriate hardness and apply K10 micro grain carbide. We then precision grind the blades to 800 grit (using the wet grinding process) so that it is razor sharp and then finish it with a baked-on metallic paint. This router bit is made for us and to our exacting specifications in an ISO 9001 rated factory. The purple color used on our Super-Duty Router Bits is a registered trademark and is owned by Grizzly Industrial.
Order G3854 replacement bearing.
