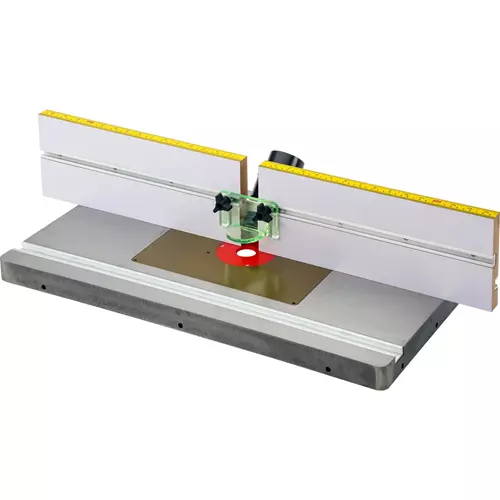

T1244 Router Table Wing for Table Saws

Add router table functionality to your table saw!

The T1244 Router Table Wing fits as a replacement or extension to most table saw wings to create a feature-packed router station attached to your saw.

It features 3/8" x 3/4" T-slots on each fence face and on the table for attaching feather boards or other hold-down devices, a 2-1/4"–2-1/2" dust port, and three included table inserts.

Router lifts will not fit a table with a 12" x 9" insert purchased before 2/1/2024. Router lifts will fit tables with an 11-3/4" x 9-1/4" insert, such as the T31638 with an insert plate opening of 11-3/4" x 9-1/4".

Drilling mounting holes may be required.

Made in an ISO 9001 factory

SPECIFICATIONS:

• Mounting plate opening: 11.785" x 9.285" x 0.446"
• Table inserts: Solid, 32mm, 37mm
• Fence face dimensions (x2): 6" x 15-3/4" x 1"
• T-slot size: 3/8" x 3/4"
• Dust port size: 2-1/4"–2-1/2"
• Table size: 16" x 27"
• Approximate shipping weight: 53 lbs.

Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information.

Parts may be available online and are shipped from the Grizzly parts warehouse in Springfield, MO.

Need help?

We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the T1244 comes with a 1-year warranty.
