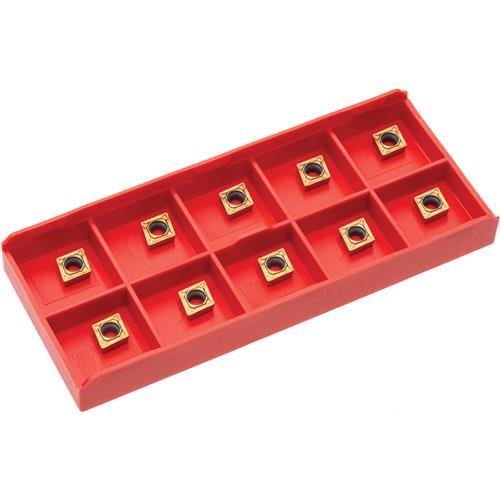

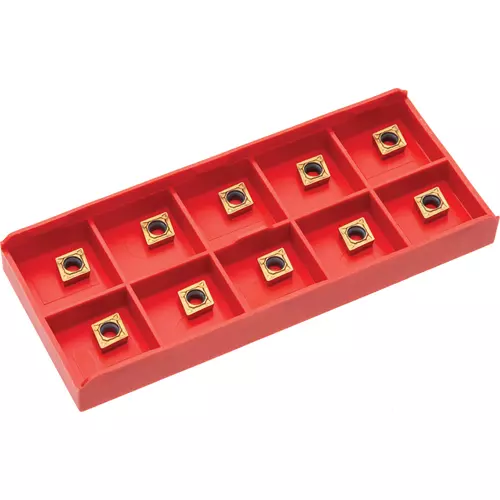

T34475 Harlingen® All-Purpose CCMT Carbide Inserts, 10-Pk.

Specifically designed for insert turning tool, indexable end mill, and boring bar sets, these all-purpose carbide inserts offer exceptional cutting across a broad range of materials, including steel, stainless steel, and cast iron. Designed with a positive geometry, they provide a clean-cutting action and offer four usable cutting edges for reliable material removal.

Advanced TiAlN Coating: The titanium aluminum nitride (TiAlN) coating provides exceptional hardness and superior wear resistance. This enables the cutting edge to maintain and form a self-protective aluminum oxide layer as it wears. This results in superior wear resistance, enabling higher cutting speeds and greatly extended tool life.

These inserts provide a reliable and cost-effective solution, ensuring performance you can depend on in a variety of machining applications.

FITS:

• H5680 Insert Turning Tool Set, 5/16"
• H5681 Insert Turning Tool Set, 1/2"
• H5689 Indexable End Mill Set, 3/8"–5/8"
• T34450 Multi-Purpose Indexable Tool Set, 1/4"
• T34451 Multi-Purpose Indexable Tool Set, 3/8"
• T34454 Indexable Boring Bar Set, 5/16"–5/8"
• T34455 Indexable Boring Bar Set, 3/8"–5/8"

SPECIFICATIONS:

• Designation: CCMT060204
• Insert shape: Diamond (Rhombic)
• Insert angle: 80°
• Clearance angle: 7° Positive
• Tolerance class: M
• Insert size: 6.35mm (1/4") I.C.
• Insert thickness: 2.38mm (3/32")
• Nose radius: 0.4mm
• Insert material: Carbide
• Insert coating: TiAlN
• Target materials: Steel, stainless steel, cast iron
• Quantity: 10

Upgrade your machining operations with these CCMT060204 carbide inserts.
