T34450 Harlingen® Multi-Purpose Indexable Tool Set, 1/4" Shank

Upgrade your metal lathe operations with this all-in-one indexable tool bit set.

This indexable carbide tool set makes lathe setup and tool changes faster than with traditional tools. The versatile turning assortment allows for precise grooving, parting, and threading, while the 1/4" x 3/8" shanks offer flexible mounting, fitting most mini-lathes and series 100 quick-change tool post holders.

FEATURES and BENEFITS:

Seven Tool Holders: This comprehensive set includes a variety of right-hand, left-hand, and center-cutting tool holders to handle a full range of lathe work. Each tool is made from high-strength steel with a durable satin chrome finish that inhibits rust and corrosion.

• SCLCR-2, for right-hand turning.
• SCLCL-2, for left-hand turning.
• SDJCR-2, for profiling and cornering.
• SDNCN-2, for neutral turning and chamfering.
• SWGCR-05, for grooving and profiling.
• MGEHR-2, for parting and grooving.
• SER-08, for external threading.

Assorted Inserts: The set comes with seven total inserts, one for each tool holder, so you can begin cutting immediately. The general-purpose inserts feature an advanced Titanium Aluminum Nitride (TiAlN) coating. This coating is engineered for exceptional hot hardness, allowing it to maintain its edge at high temperatures and form a self-protective aluminum oxide layer as it wears. This results in superior wear resistance, enabling higher cutting speeds and greatly extended tool life.

Wrench Assortment: The set includes Torx® T-8 and T-10 keys as well as a 3mm hex wrench, to ensure you have the right tool for securing and changing every insert.

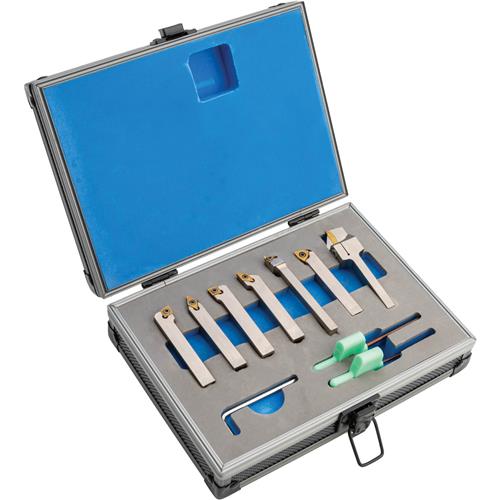

Protective Storage Case: The set comes in a durable metal case with a convenient handle. The custom-cut foam interior securely holds all seven tool holders and their corresponding wrenches in place for easy transport and protection.

SPECIFICATIONS:

• Shank size: 1/4" Square
• Insert types:
  • 08ER A60 (T34468)
  • CCMT060204 (T34411, T34413, T34415, T34475)
  • DCMT070204 (T34421, T34423, T34575, T34581, T34477)
  • MGMN200 (T34481)
  • WCMT050308 (T34486)
• Insert dimensions:
  • 08ER A60: 8mm I.C., 60° thread angle
  • CCMT060204: 6.35mm (1/4") I.C., 2.38mm (3/32") thickness, 0.4mm nose radius
  • DCMT070204: 6.35mm (1/4") I.C., 2.38mm (3/32") thickness, 0.4mm nose radius
  • MGMN200: 2mm width, 0mm nose radius
  • WCMT050308: 5mm I.C., 3mm thickness, 0.8mm nose radius
• Insert coating: TiAlN (Titanium Aluminum Nitride)
• Quantity: 7 Tool holders, 7 inserts, Torx® T-8 and T-10 keys, 3mm hex wrench
