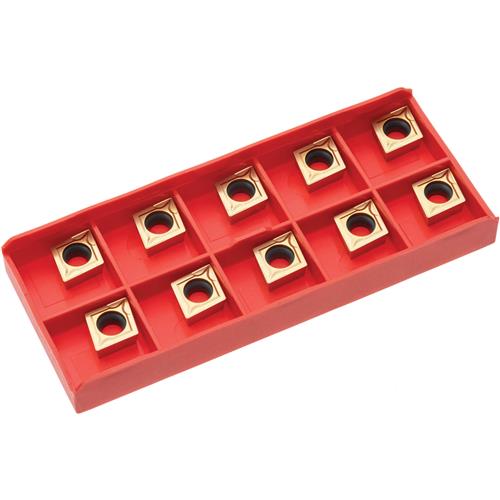

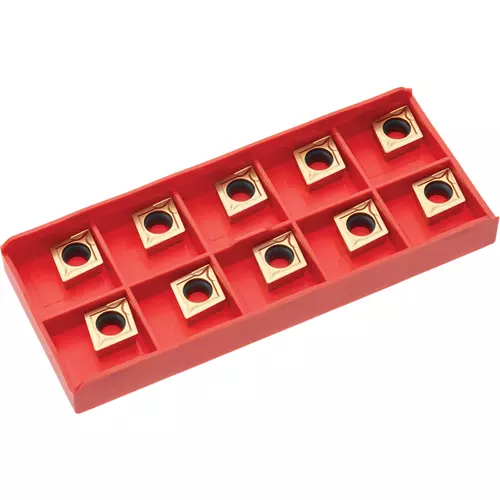

T34576 Harlingen® All-Purpose CCMT Carbide Inserts, 10-Pk.

These CCMT 80° diamond carbide inserts are engineered for efficient turning, facing, and boring operations on steel, stainless steel, and cast iron. Designed with a positive geometry, they provide a clean-cutting action and offer four usable cutting edges for reliable material removal.

The titanium aluminum nitride (TiAlN) coating provides exceptional hardness and superior wear resistance. This enables the cutting edge to maintain integrity at high temperatures, greatly extending tool life.

These inserts provide a reliable and cost-effective solution, ensuring performance you can depend on.

SPECIFICATIONS:

• Designation: CCMT09T304
• Insert shape: Diamond (Rhombic)
• Insert angle: 80°
• Clearance angle: 7° Positive
• Tolerance class: M
• Insert size: 9.525mm (3/8") I.C.
• Insert thickness: 3.97mm (5/32")
• Nose radius: 0.4mm
• Insert material: Carbide
• Insert coating: TiAlN
• Target materials: Steel, stainless steel, cast iron
• Quantity: 10

Upgrade your machining operations with these CCMT09T304 carbide inserts.
