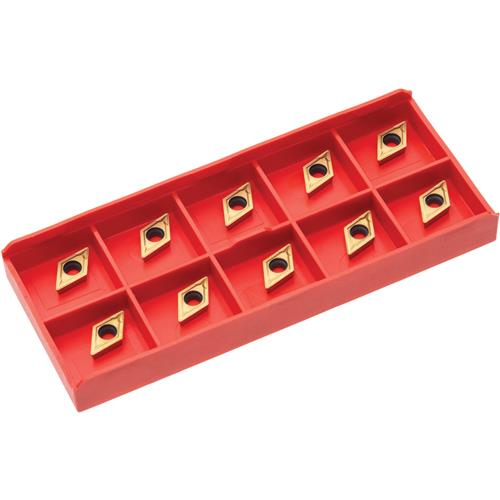

T34477 Harlingen® All-Purpose DCMT Carbide Inserts, 10-Pk.

Specifically designed for precise turning, facing, and boring, these carbide inserts provide exceptional finishing. They offer outstanding accuracy and a smooth surface finish across a broad range of materials, including steel, stainless steel, and cast iron.

Each insert features an advanced titanium aluminum nitride (TiAlN) coating. This coating is engineered for exceptional hardness, allowing it to maintain its edge at high temperatures and form a self-protective aluminum oxide layer as it wears. This results in superior wear resistance, enabling higher cutting speeds and greatly extended tool life.

These inserts provide a reliable and cost-effective solution, ensuring performance you can depend on in a variety of machining applications.

FITS:

• H8278 Boring Bar
• H8279 Boring Bar
• H8281 Boring Bar

SPECIFICATIONS:

• Designation: DCMT070204
• Insert shape: Diamond (Rhombic)
• Insert angle: 55°
• Clearance angle: 7° Positive
• Tolerance class: M
• Insert size: 6.35mm (1/4") I.C.
• Insert thickness: 2.38mm (3/32")
• Nose radius: 0.4mm
• Insert material: Carbide
• Insert coating: TiAlN
• Target materials: Steel, stainless steel, cast iron
• Quantity: 10

Upgrade your machining operations with these DCMT070204 carbide inserts.

Need help?

We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition.

Made in an ISO 9001 factory
