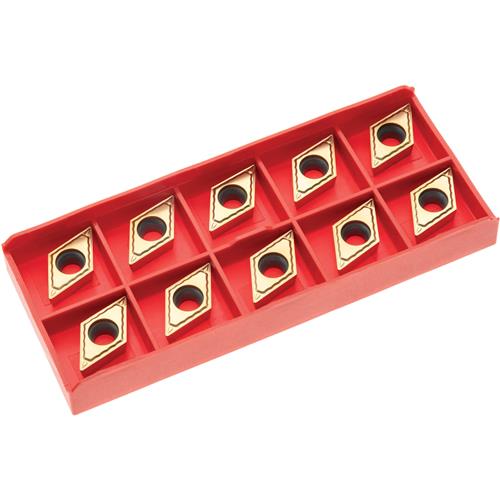

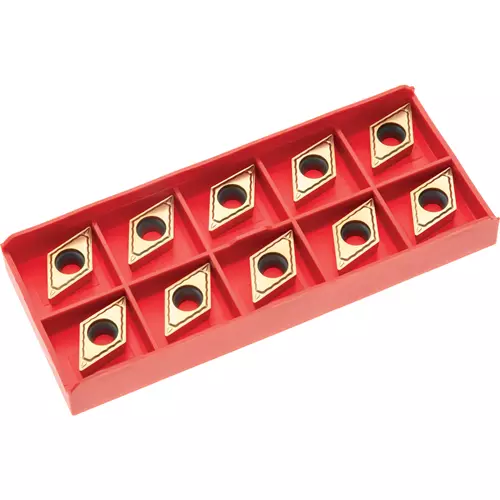

T34478 Harlingen® All-Purpose DCMT Carbide Inserts, 10-Pk.

Specifically designed for precise turning, facing, and boring, these carbide inserts provide exceptional finishing. They offer outstanding accuracy and a smooth surface finish across a broad range of materials, including steel, stainless steel, and cast iron.

The titanium aluminum nitride (TiAlN) coating provides exceptional hardness and superior wear resistance. This enables the cutting edge to maintain integrity at high temperatures, greatly extending tool life.

These inserts provide a reliable and cost-effective solution, ensuring performance you can depend on in a variety of machining applications.

FITS:

• H8278 Boring Bar
• H8279 Boring Bar
• H8281 Boring Bar

SPECIFICATIONS:

• Designation: DCMT070204
• Insert shape: Diamond (Rhombic)
• Insert angle: 55°
• Clearance angle: 7° Positive
• Tolerance class: M
• Insert size: 9.525mm (3/8") I.C.
• Insert thickness: 3.97mm (5/32")
• Nose radius: 0.4mm
• Insert material: Carbide
• Insert coating: TiAlN
• Target materials: Steel, stainless steel, cast iron
• Quantity: 10

Upgrade your machining operations with these DCMT070204 carbide inserts.
