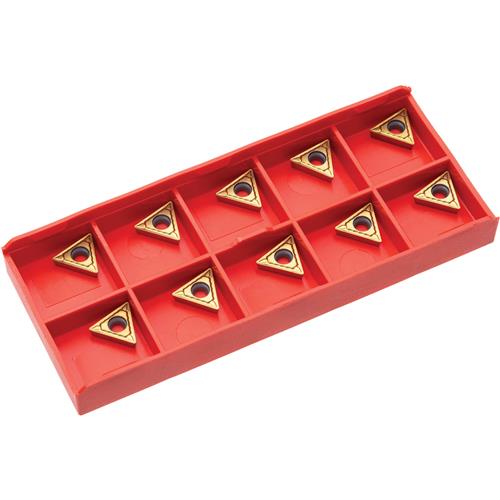

T34483 Harlingen® TCMT110204 Carbide Inserts, 10-Pack

Precision-ground triangular inserts engineered for smooth finishing and versatile turning operations.

These TCMT110204 carbide inserts provide a high-performance solution for general-purpose turning, facing, and boring. Their 7-degree positive clearance angle and sharp cutting edges reduce cutting forces, making them ideal for small- to medium-sized lathes where machine rigidity or horsepower may be limited.

FEATURES and BENEFITS:

• Positive Rake Geometry: The TCMT design features a 7° positive clearance angle that reduces friction and heat buildup. This geometry excels at producing excellent surface finishes and maintaining tight tolerances during finishing passes.
• Advanced TiAlN Coating: The titanium aluminum nitride (TiAlN) coating provides exceptional hardness and superior wear resistance. This enables the cutting edge to maintain integrity at high temperatures, greatly extending tool life.
• Multi-Material Performance: Optimized for high-performance cutting in stainless steel, steel, and cast iron. The specialized chipbreaker design ensures efficient chip evacuation and prevents "bird-nesting" during continuous cuts.
• Precision Ground Edges: Each triangular insert provides three sharp cutting edges, offering an economical way to maintain production. When one edge wears, simply index the insert to a fresh corner to resume precision machining.
• Convenient 10-Pack: Sold in a protective 10-piece storage case, ensuring you have a steady supply of fresh edges for both production runs and one-off repair jobs.

FITS:

• T34447 Indexable Turning Tool Holders
• T34448 Indexable Boring Bars

SPECIFICATIONS:

• Designation: TCMT110204
• Insert Shape: Triangular
• Clearance Angle: 7° (Positive)
• Insert size: 6.35mm I.C. (1/4")
• Insert thickness: 2.38mm (3/32")
• Nose radius: 0.4mm (1/64")
• Insert material: Carbide
• Insert coating: TiAlN
• Insert quantity: 10
• Target materials: Steel, stainless steel, cast iron

Upgrade your machining operations with these TCMT110204 carbide inserts.
