T34448 Harlingen® 5-Pc. 1/2" Shank, Indexable Carbide Lathe Tool Bit Set

Upgrade your metal lathe operations with this all-in-one indexable tool bit set.

This indexable carbide tool set makes lathe setup and tool changes faster than with traditional tools. Featuring a standard 1/2" shank, this comprehensive, all-in-one set fits Series 100 quick-change tool post holders. The versatile assortment gives you the ability to cut and shape metal with precision, allowing for most common turning, facing, and profiling operations.

FEATURES and BENEFITS:

Five Essential Tool Holders: Includes a comprehensive set of right-hand, left-hand, and center-cutting tool holders to handle a wide variety of tasks. Each tool is made from high-strength steel with a durable satin chrome finish that inhibits rust and corrosion.

• STACR08-2, for right-hand turning and facing.
• STNCR08-2, for right-hand turning and facing.
• STBCR08-2, for left-hand turning and facing.
• STECN08-2, for profiling and chamfering work.
• STCCR08-2, for facing and shoulder work.

TiAlN-Coated Inserts: The set includes five TCMT110204 carbide inserts with an advanced Titanium Aluminum Nitride (TiAlN) coating. This coating is engineered for exceptional hot hardness, allowing it to maintain its edge at high temperatures and form a self-protective aluminum oxide layer as it wears. This results in superior wear resistance, enabling higher cutting speeds and greatly extended tool life.

Quick Insert Changes: The included Torx® T-8 wrench allows for quick and secure insert replacement, which is critical for maintaining productivity.

Indexable Repeatability: The precision-machined tool holders and standard inserts ensure the cutting edge is always in the same position, providing unmatched repeatability during tool changes.

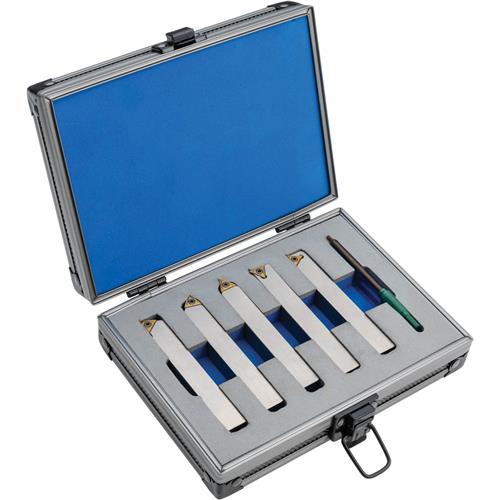

Protective Storage Case: The set comes in a durable metal case with a convenient handle. The custom-cut foam interior securely holds all five tool holders and the Torx® T-8 key in place for easy transport and protection.

SPECIFICATIONS:

• Shank size: 1/2" Square
• Insert type: TCMT110204 (T34428, T34483)
• Insert shape: 60° Triangle (Rhombic)
• Insert dimensions: 6.35mm (1/4") I.C., 2.38mm (3/32") thickness, 0.4mm nose radius
• Insert coating: TiAlN (Titanium Aluminum Nitride)
• Quantity: 5 Tool holders, 5 inserts, 1 Torx® T-8 wrench

Need help?

We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition.

Made in an ISO 9001 factory
