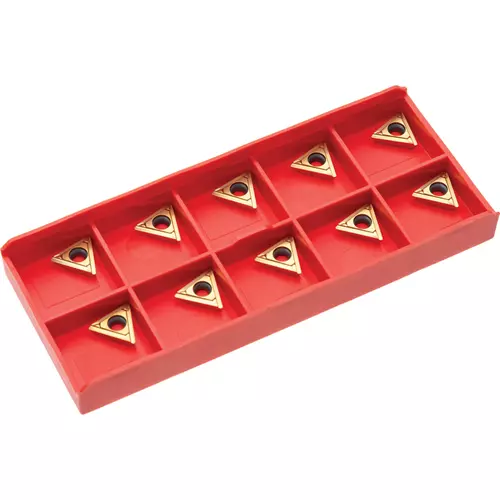

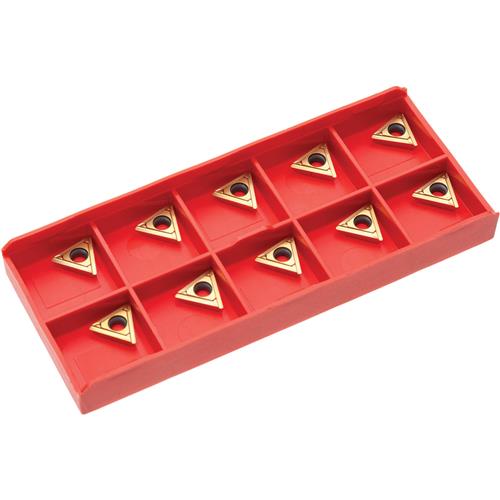

T34484 Harlingen® TCMT110204GSR Carbide Inserts, 10-Pk.

High-performance inserts engineered for smooth, repeatable chamfering and countersinking.

These TCMT carbide inserts are precision-ground for use in indexable countersinks, delivering superior performance, smooth cutting, and a high-quality finish during demanding chamfering and countersinking processes. Their premium coating ensures exceptional durability and stability.

FEATURES and BENEFITS:

• Advanced TiAlN Coating: The titanium aluminum nitride (TiAlN) coating provides exceptional hardness and superior wear resistance. This maintains cutting edge integrity at high temperatures, greatly extending tool life.
• Precision Cutting Geometry: The TCMT design features a sharp, three-cornered cutting edge and a positive rake angle. This geometry minimizes cutting forces, ensures efficient chip evacuation, and is optimized for producing smooth, chatter-free 90° edges and excellent surface finishes.
• Versatile Applications: Designed for general-purpose countersinking, deburring, and chamfering of external and internal edges across various materials, ensuring consistent, clean results for screw heads and component edges.
• Economical Refills: Sold in a convenient 10-pack, these inserts provide a cost-effective way to refresh the performance of your indexable countersink tool body.

FITS:

• T34465 Indexable Countersink
• T34466 Indexable Countersink
• T34467 Indexable Countersink

SPECIFICATIONS:

• Designation: TCMT110204GSR
• Insert shape: Triangular
• Insert angle: 60°
• Clearance angle: 7° Positive
• Insert size: 11mm (7/16") I.C.
• Insert thickness: 2.38mm (3/32")
• Insert material: Carbide
• Insert coating: TiAlN
• Insert quantity: 10

Upgrade your machining operations with these TCMT carbide inserts.
