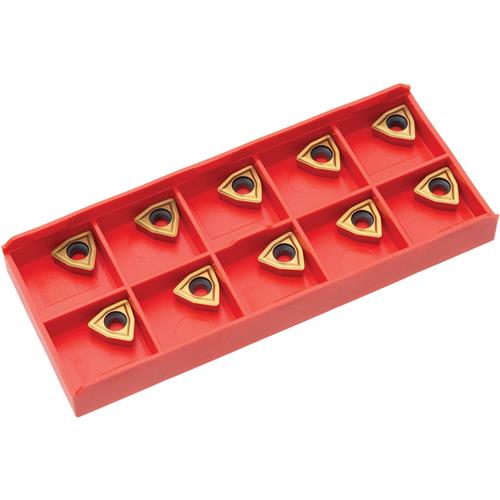

T34486 Harlingen® WCMT050308 Carbide Inserts, 10-Pack

High-stability trigon inserts engineered for precision turning and heavy-duty boring operations.

These carbide inserts provide a robust solution for demanding turning and internal boring. Their unique trigon shape combines the strength of a square insert with the cutting efficiency of a diamond, ensuring stable metal removal and excellent surface finishes in challenging production environments.

FEATURES and BENEFITS:

• Trigon Geometry for Maximum Strength: The WCMT design features an 80-degree included angle that provides superior edge strength compared to standard triangular inserts. This geometry minimizes the risk of edge chipping and tip breakage during heavy roughing or interrupted cuts.
• Positive Rake Efficiency: Featuring a 7° positive clearance angle, these inserts slice through material with reduced resistance. This design minimizes heat generation and pressure on the workpiece, which is essential for maintaining accuracy during long cutting cycles.
• Advanced TiAlN Coating: The titanium aluminum nitride (TiAlN) coating provides exceptional hardness and superior wear resistance. This enables the cutting edge to maintain integrity at high temperatures, greatly extending tool life.
• Multi-Material Performance: These inserts deliver predictable performance in steel, stainless steel, and cast iron. The rugged carbide grade withstands varied depths of cut while maintaining tight dimensional tolerances.
• Convenient 10-Pack: Sold in a protective 10-piece storage case, ensuring you have a steady supply of fresh edges for both production runs and one-off repair jobs.

SPECIFICATIONS:

• Designation: WCMT050308
• Insert Shape: Trigon
• Clearance Angle: 7° (Positive)
• Insert size: 7.94mm I.C. (5/16")
• Insert thickness: 3.18mm (1/8")
• Nose radius: 0.8mm (1/32")
• Insert material: Carbide
• Insert coating: TiAlN
• Insert quantity: 10
• Target materials: Steel, stainless steel, cast iron

Upgrade your machining operations with these WCMT050308 carbide inserts.
