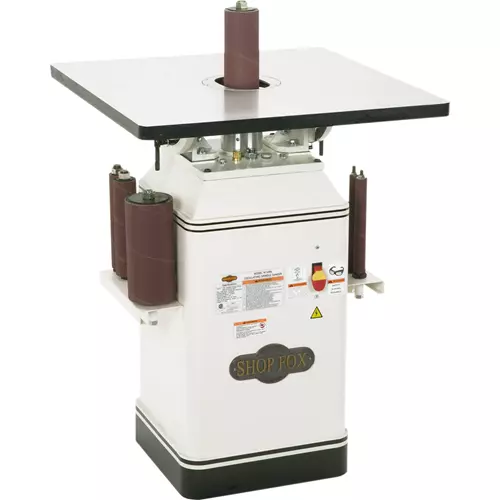

Shop Fox W1686 1 HP Oscillating Spindle Sander

No expense has been spared to bring you this feature-packed spindle sanding machine.

With a whopping 25-1/4" x 25-1/4" precision-ground cast-iron table, feel comfort in the size and capacity to handle your sanding needs.

The heavy-duty trunnion assembly will effortlessly support your heaviest oversized workpieces and the 1 HP motor will gracefully sculpt the hardest woods.

Built for everyone from the demanding professional shop to the DIYer who has it all, the W1686 will without a doubt meet the highest of expectations!

The W1686 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your sander.

Made in an ISO 9001 factory

CSA certified

SPECIFICATIONS:

• Motor: 1 HP, 120V/240V (prewired for 120V), 12A/6A
• Sanding drum sizes: 1/4" x 5", 3/8" x 6", 1/2" x 6", 5/8" x 6", 3/4" x 9", 1" x 9", 1-1/2" x 9", 2" x 9", 3" x 9", 4" x 9", tapered and threaded
• Spindle speed: 1720 RPM
• Oscillation speed: 72 SPM
• Stroke length: 1-1/2"
• Table size: 25-1/4" W x 25-1/4" L
• Table tilt: 45° front and 20° back
• Floor to table height: 35-1/2"
• Dust port: 4"
• Footprint: 16" x 16"
• Overall dimensions: 25-1/4" W x 28-3/4" D x 44-1/2" H
• Approximate shipping weight: 381 lbs.

FEATURES:

• Precision-ground cast-iron table
• Powder-coated finish
• Steel table inserts
• 100-grit sanding sleeve included for each spindle drum

Need help?

We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the W1686 comes with a 2-year warranty.
