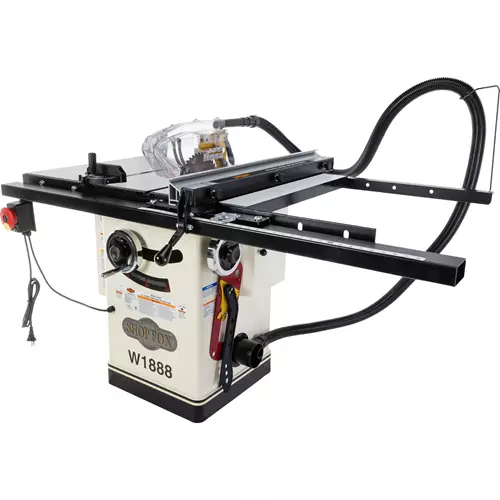

Shop Fox W1888 10" 2 HP 115V/230V Cabinet Table Saw with Dual-Port Dust Collection

The W1888 isn't just a table saw, it's an investment.

This machine is meticulously designed for the passionate woodworker who demands top-notch performance. It has the perfect balance of power to tackle tough cuts, precision for clean results, and affordability to fit your budget.

Engineered for Excellence:

• 2 HP TEFC Motor: Delivers superior power to handle hardwoods and thick materials with ease. Selectable voltage (115V or 230V) allows for optimization of power and efficiency.
• Cast-Iron Construction: The W1888 boasts a cast-iron table, trunnions, and fence for unwavering stability and vibration dampening. This translates to cleaner cuts and a longer lifespan for the saw.
• Micro-Adjustable Fence System: The two-position fence system with micro-adjustments ensures precise rips, down to the finest fractions of an inch.
• Superior Dust Collection: The internal dust shroud and fully-enclosed blade guard with a 4" dust port work in tandem to capture dust particles at the source, keeping your workspace clean and healthy.

Additional Features:

• Easy-glide fence system for smooth adjustments
• Heavy-duty miter gauge for accurate angle cuts
• Poly-V drive belt for reduced noise and vibration
• Safety paddle switch with disabling key
• Two-year warranty for peace of mind

The W1888 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your saw.

Made in an ISO 9001 factory

CSA certified

20A Minimum Circuit Requirement

SPECIFICATIONS:

• Motor: 2 HP, 115V/230V (prewired 115V), single-phase, 16A/8A
• Rip capacity: 31-1/2" right, 11-3/8" left of blade
• Maximum depth of cut @ 90°: 3-1/8"
• Maximum depth of cut @ 45°: 2-1/8"
• Overall table dimensions: 40-1/8" x 27"
• Distance from front of table to center of blade: 16-1/4"
• Floor-to-table height: 34-1/4"
• Arbor diameter: 5/8"
• Arbor speed: 4000 RPM
• Max width of dado: 13/16"
• Dust port size: 4"
• Footprint: 19-1/2" x 20-1/2"
• Overall dimensions: 66" W x 40" D x 48" H
• Approximate shipping weight: 449 lbs.

*This machine is prewired for 115V operation. 230V operation requires purchase and installation of conversion kit PX1888224X.
