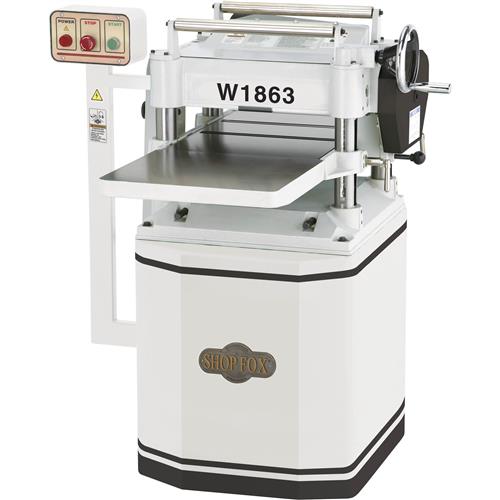

W1863 Shop Fox 15" Helical Cutterhead Planer

Produce smooth, even surfaces with this feature-rich 15" planer.

Planing creates uniform thickness and flatness in wood pieces, making them easier to work with and enhancing their overall quality.

The 15", 4-row helical cutterhead comes complete with 52 indexable carbide inserts that can each be rotated three times to expose new, sharp cutting edges.

The inserts sit at a slight angle to the for smooth shearing cuts, minimized tearout, a smoother finish, and operating at lower noise levels.

A 230-volt, 3 horsepower motor powers through cuts up to 3/32" deep at full width or 1/8" deep on material up to 6" wide.

The 2-speed gearbox allows you to choose between 16 and 28 FPM for a smooth finish or high-production feed rate.

Other features include a pedestal-mounted switch, precision-ground cast-iron infeed and outfeed tables, and large board return rollers for efficient production.

Like all Shop Fox planers, the W1863 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)

The W1863 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your sander.

The Customer Service and Technical Support Teams are also U.S.-based. Parts for the planer may be available online and shipped from the parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

CSA certified

SPECIFICATIONS:

• Motor: 3 HP, 230V, single-phase, 12A
• Maximum cutting width: 15"
• Maximum cutting height: 6"
• Minimum stock length: 6"
• Minimum stock thickness: 3/16"
• Maximum stock thickness: 6-1/8"
• Maximum depth of cut full width: 3/32"
• Maximum depth of cut 6" wide board: 1/8"
• Cutterhead type: 4-row helical, 52 inserts
• Cutterhead speed: 5000 RPM
• Feed rate: 16 FPM, 28 FPM
• Table size: 15" W x 48" L
• Overall dimensions: 37" W x 48" D x 44" H
• Approximate shipping weight: 553 lbs.

FEATURES:

• Two-year warranty!!
• Helical cutterhead with indexable carbide inserts
• Extra-large ball-bearing return rollers
• Large side-mounted handwheel
• Cabinet style stand
• Internally mounted 3hp motor
• Triple v-belt drive
• Pedestal-mounted control panel with e-stop
• Anti-kickback fingers
• Oil-bath style gearbox for drive system
• Triple belt drive inside housing
• Heavy-duty cast-iron extension wings
