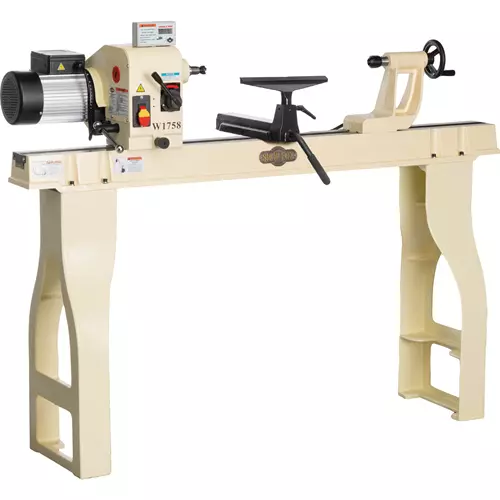

W1758 Shop Fox 16" x 46" 2 HP Variable-Speed Wood Lathe
Here it is! Shop Fox’s fully featured, large-capacity wood lathe at a competitive price!
Featuring a hefty 2 HP motor, variable-speed spindle, a swivel-head for outboard turning, a digital tachometer for setting the exact spindle speed, precision-ground cast-iron bed, headstock and tailstock for quick locks and heavy cast-iron legs with floor-mounting holes for the ultimate in stability.
Go ahead. Try one out for yourself. This beauty will handle it all!
SPECIFICATIONS:
- Motor: 2 HP, 110V, single-phase, 14A
- Swing over bed: 16"
- Swing over tool rest base (banjo): 13-1/2"
- Distance between centers: 46"
- Spindle speeds: Variable, 600-2400 RPM
- Spindle threads: 1" x 8 TPI, right hand
- Spindle taper: MT#2
- Tailstock taper: MT#2
- Tool rest width: 11-7/8"
- Tool rest post diameter: 25mm
- Footprint: 13-3/4" x 54"
- Overall dimensions: 72-1/2" L x 19" W x 48" H
- Approximate shipping weight: 338 lbs.
INCLUDES:
- 6" faceplate
- MT#2 spur center
- MT#2 live center
FEATURES:
- Two-year warranty!!
- Variable spindle speed with digital readout
- Tool rest swivel arm extension for outboard turning
- Headstock swivels for outboard turning
- Quick lock/release levers for tailstock and headstock
- Safety paddle switch with removable key
