T27313 Copy Attachment for G0462, G0584, G0632Z, G0733, G0987, G5979, and W1758

Make multiple copies from a template or master workpiece.

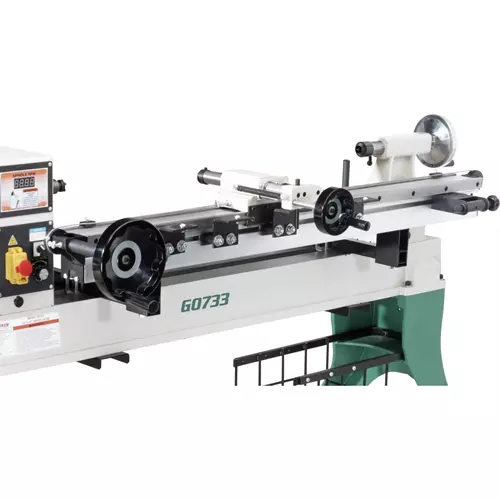

The T27313 Copy Attachment is ideal for making multiple copies of spindle shapes working from either an existing sample or a template pattern.

A copy attachment helps create a matched product by referencing the original design or a template based off an original design by following the contours perfectly with an indexing stylus.

The copy attachment mounts securely to your lathe's bed, smoothly traveling along the sturdy frame with easy hand wheel adjustments.

If you have stair railing spindles or multiple chair or table legs to produce, this copy attachment will simplify your life.

For use with the G0462, G0584, G0632Z, G0733, G0987, G5979, and W1759 Wood Lathes.

Made in an ISO 9001 factory

SPECIFICATIONS:

• Maximum duplicating length: 39-1/3"
• Maximum cutter travel: 3-1/8"
• Cutter height: 6" to 8-1/4"
• Overall size: 52-1/3" x 16-1/8" x 7-1/2"
• Approximate shipping weight: 69 lbs.
