Item# W1825 Model# W1825

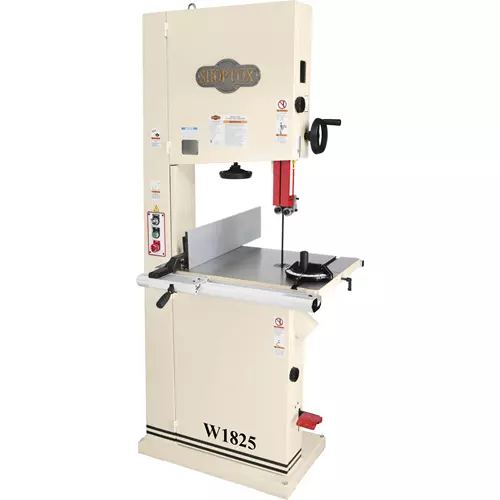

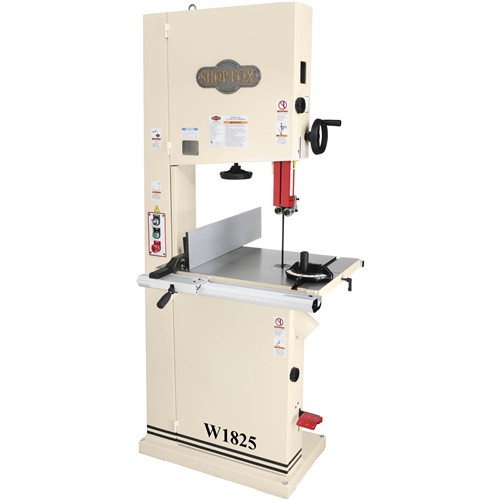

Shop Fox W1825 - 19" 3 HP Heavy Duty Bandsaw

19" 3 HP Heavy Duty Bandsaw-img-0
19" 3 HP Heavy Duty Bandsaw-img-1
19" 3 HP Heavy Duty Bandsaw-img-2
19" 3 HP Heavy Duty Bandsaw-img-3
19" 3 HP Heavy Duty Bandsaw-img-4
19" 3 HP Heavy Duty Bandsaw-img-5
19" 3 HP Heavy Duty Bandsaw-img-6
19" 3 HP Heavy Duty Bandsaw-img-7
19" 3 HP Heavy Duty Bandsaw-img-8
19" 3 HP Heavy Duty Bandsaw-img-9
19" 3 HP Heavy Duty Bandsaw-img-10
19" 3 HP Heavy Duty Bandsaw-img-11
19" 3 HP Heavy Duty Bandsaw-img-12
19" 3 HP Heavy Duty Bandsaw-img-13
19" 3 HP Heavy Duty Bandsaw-img-14
$2,199.99
+$149.00 Freight
+$0.00  Oversize
  • Motor: 3 HP
  • Max cutting width: 18-1/4 in.
  • Max cutting height: 12
  • Table size: 19 x 26-3/4 in.
  • Wheel type: Computer-Balanced Cast Iron
  • Blade size: 143 in.
  • Quick blade change: Yes
  • Overall height: 76 in.
  • Shipping weight: 500 lbs.

Hover to View Details

Add to Cart
Backordered - More on the way Order today to secure your spot in line. Your credit card will not be charged until we ship your product and you may cancel at any time.

Accessories

Recommended For You

Overview

W1825 Shop Fox 19" 3 HP Heavy Duty Bandsaw

Power, capacity, and extra features make this 19" Heavy-Duty Bandsaw the saw of choice for many serious woodworkers.

Included on the W1825 is an extra-wide table, deluxe 6" tall resaw fence that also converts to a low-profile fence, rack-and-pinion table tilt mechanism with built-in table support brace, cast-iron table trunnions, computer-balanced cast-iron wheels with polyurethane tires, and a foot brake.

The foot brake not only acts as a safety feature, but it can also speed production.

All-in-all, you would be hard-pressed to find a bandsaw with more useful features and proven performance than this outstanding machine.

Made in an ISO 9001 Factory

CSA certified meeting CSA C22.2 #71.2-10 and UL 987-7th standards!

SPECIFICATIONS:

  • Motor: 3 HP, 220V, single-phase, TEFC capacitor start-induction
  • RPM: 1725
  • Precision-ground cast-iron table size: 26-3/4" x 19" x 1-1/2" thick
  • Floor to table height: 37-1/2"
  • Cutting capacity/throat: 18-1/4"
  • Maximum cutting height: 12"
  • Blade length: 143"
  • Blade length range: 141-1/2" - 143"
  • Blade width range: 1/8" - 1-1/4"
  • 2 Blade speeds: 1700, 3500 FPM
  • Wheels: computer-balanced cast-iron with polyurethane tires
  • Wheel covers: pre-formed, hinged steel
  • Blade guides: dual ball bearings with full enclosure protection
  • Motor bearings: sealed and permanently lubricated
  • Table tilt: 5° left, 45° right
  • Overall size: 36"W x 76"H x 32"D
  • Approximate shipping weight: 500 lbs.

FEATURES:

  • Two-year warranty!!
  • Quick-change blade release/tensioning
  • Blade tension indicator
  • Rack-and-pinion table tilt mechanism
  • Computer-balanced cast-iron wheels
  • Height scale measurement
  • Fence with scale and magnifying window
  • Deluxe cast-iron fence with deluxe extruded-aluminum resaw fence
  • Miter gauge
  • Two 4" dust ports
  • Rack-and-pinion upper guide adjustment
  • Foot brake
  • Cast-iron trunnion
  • Key lockout safety switch
  • Includes 3/4" hook-style blade
