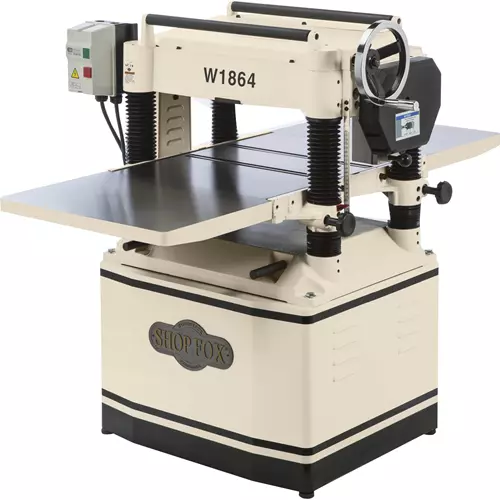

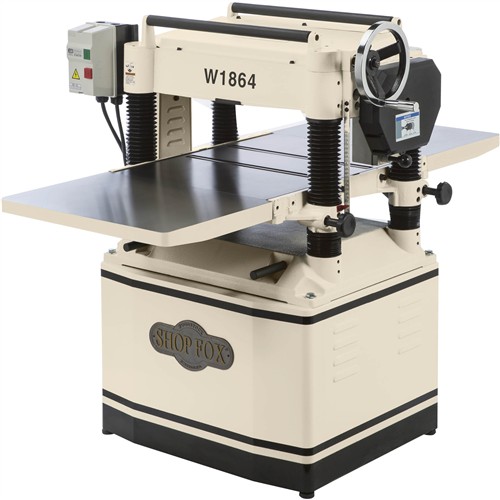

W1864 Shop Fox 20" 5 HP Planer

The W1864 Shop Fox 20" 4-knife planer with precision-ground cast-iron extension wings has the quality, capacity, and features to be a proud addition in any shop.

Its 5 HP motor will handle material up to 20" wide by 8-5/8" thick, and its two feed speeds will give you the option of running at 956 cuts per foot, or a finer 1222 cuts per foot.

Check out all of the other great features and you’ll agree, this is one fine machine!

Made in an ISO 9001 factory

CSA certified

SPECIFICATIONS:

• Motor: 5 HP, 220V, single-phase, 23A
• Maximum stock width: 20"
• Maximum stock thickness: 8-5/8"
• Minimum stock thickness: 1/4"
• Minimum stock length: 7"
• Maximum cutting depth planing full width: 3/32"
• Maximum cutting depth planing 6" wide board: 1/8"
• Cutterhead diameter: 3-1/4"
• Cutterhead type: 4-Knife
• Knife size & type: 20" x 1" x 1/8", HSS
• Cutterhead speed: 5,000 RPM
• Feed rate: 16 & 28 FPM
• Table size with extensions: 20" x 56"
• Dust port size: 5"
• Footprint: 23" x 27-12"
• Overall dimensions: 39" W x 58" D x 45" H
• Approx. shipping weight: 816 Lbs.

FEATURES:

• Two-year warranty!!
• Precision-ground cast-iron table and extension wings
• Extra-large ball-bearing return rollers
• Cabinet-style stand
• Magnetic switch with thermal overload protection
• Triple V-belt driven cutterhead
• Two-speed chain-driven automatic feed rollers
• Hardened anti-kickback fingers
• Four heavy-duty headstock support columns
• Internally mounted 5 HP motor
• Large side-mounted handwheel
• Oil-bath style gearbox for drive system
• Includes knife-setting jig
• Powder-coated finish
