Item# W1754 Model# W1754

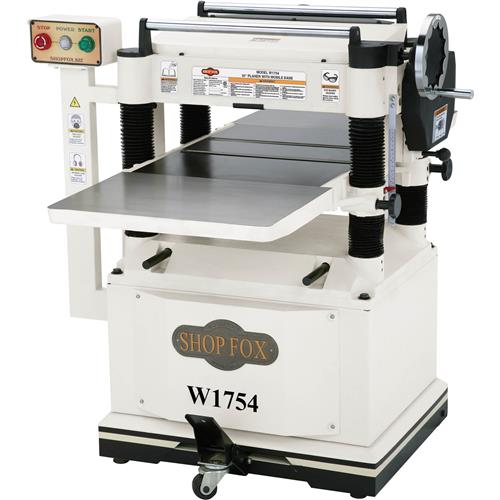

Shop Fox W1754 - 20" Planer with Built in Mobile Base

20" Planer with Built in Mobile Base-img-0
20" Planer with Built in Mobile Base-img-1
20" Planer with Built in Mobile Base-img-2
20" Planer with Built in Mobile Base-img-3
20" Planer with Built in Mobile Base-img-4
20" Planer with Built in Mobile Base-img-5
  • Motor: 5 HP
  • Max cutting width: 20 in.
  • Max cutting height: 8 in.
  • Cutter Head Type: 4 Knife
  • Cutter Head Diameter: 3 in.
  • Min Stock Length: 8 in.
  • Feed Rate(s): 16, 20 FPM
  • Table size: 25-5/8 in. x 20 in.
  • Shipping weight: 924 lbs.

Hover to View Details

Backordered - More on the way Order today to secure your spot in line. Your credit card will not be charged until we ship your product and you may cancel at any time.

Accessories

Recommended For You

Overview

W1754 Shop Fox 20" Planer with Built in Mobile Base

With its built-in locking mobile base and pedestal-mounted switch, our Model W1754 planer is easy to move and operate.

Just press down on the lock lever with your foot and this planer is mobile.

Standard features include a 55-5/8" long precision-ground cast iron table with the cast iron extension wings, two feed speeds, return rollers, a 20" x 8" capacity, adjustable bed rollers, magnetic switch with thermal overload protection, and a 5 HP motor.

Certified to CSA and UL standards!

Specifications

  • Motor: 5 HP, 240V, single-phase, 19A
  • Maximum cutting width: 20"
  • Maximum cutting height: 8"
  • Minimum stock thickness: 3/16"
  • Minimum stock length: 8"
  • Maximum cutting depth: 1/8"
  • Feed rate: 16 FPM & 20 FPM
  • Cutterhead diameter: 3-1/8"
  • Number of knives: 4
  • Cutterhead speed: 5000 RPM
  • Infeed roller: solid serrated steel
  • Outfeed Rollers: knurled steel
  • Table size: 20" x 25-5/8" (20" x 55-5/8" with extension)
  • Overall dimensions: 55-5/8"L x 36-5/8"W x 43-5/8"H
  • Approximate shipping weight: 920 lbs.

FEATURES:

  • Two-year warranty!!
  • Pedestal mounted magnetic safety switch w/ thermal protection
  • Four column support with table locks
  • Two speed gear box
  • Cast-iron table and extension wings
  • Built-in retractable mobile base
