Overview

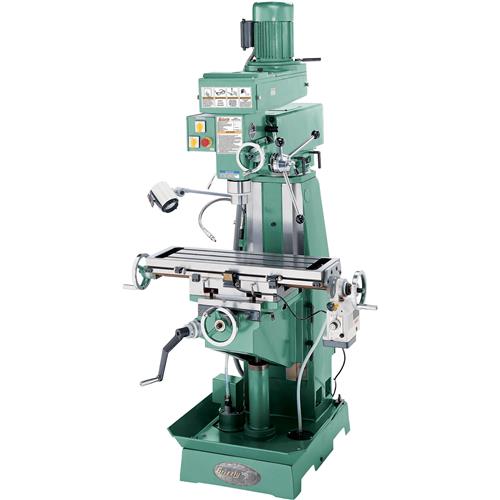

This is an extraordinary value for a vertical milling machine in this size range. It comes packed with features and capacities found on other mills costing thousands more. Start with a powerful 2 horsepower motor, coolant system and power feed on the longitudinal axis. Then add a swivelling table, an amazing 15" capacity under the spindle and a 44" maximum swing! With the heavy castings and precision ground ways, you can tackle just about any job with confidence. Includes a set of R-8 collets, milling vise and drill chuck with arbor.

Features:

  • Centralized controls
  • Massive Ram
  • Swivel head
  • Heavy castings
  • Power feed
  • Flood coolant
  • Work light

Specifications:

  • Spindle taper: R-8
  • Spindle travel: 5"
  • Table size: 9-1/2" x 31-1/2"
  • Table travel (longitudinal): 15-1/2"
  • Table travel (cross): 8-1/2"
  • Knee travel (vertical): 13"
  • Max. dist. spindle to column: 22"
  • Max. dist. spindle to table: 15"
  • Table swivel: 45° left and right
  • Head tilt: 90° left and right
  • Turret or column swivel: 90° left and right
  • T-slots: 3 on 1-5/8" centers, 1/2" stud
  • Number of speeds: 9
  • Range of speeds: 270, 390, 550, 615, 860, 930, 1800, 1960 and 2950 RPM
  • Motor: TEFC capacitor start induction
  • Voltage: 110V/220V
  • Phase: Single-Phase
  • Horsepower: 2
  • RPM: 1725
  • Power Transfer: V-Belt drive
  • Overall Height: 81"
  • Shipping weight approx.: 1996 lbs.
