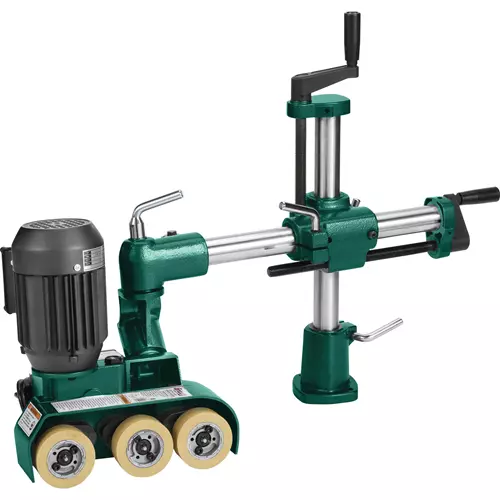

G4176 1/4 HP 4-Speed 3-Roller Power Feeder, Single-Phase

Production ripping or milling can become a chore feeding by hand.

The G4176 1/4 HP Power Feeder is for those who want to increase production, upgrade, or add on another stock feeder.

The G4176 has the option to feed a workpiece at six different feed rates: 20, 23, 33, and 43 feet per minute.

The G4177 Replacement Roller and H3236 Slow Speed Kit are available. The H3236 increases the speed range allowing for both slower and faster feed rates.

SPECIFICATIONS:

• Motor: 1/4 HP, 120V, single-phase, 2.5A
• Feed speeds: 20, 26, 33, 43 FPM
• Rotation: Forward and reverse
• Maximum height of rollers: 6"
• Minimum workpiece length: 5"
• Vertical travel: 6-1/2"
• Horizontal travel: 10"
• Swing: 360°
• Rollers: (3) synthetic rubber, 1-3/16" wide x 3-1/8" dia.
• Roller suspension: 3/4"
• Overall dimensions: 34" W x 13" D x 24" H
• Approximate shipping weight: 79 lbs.

FEATURES:

• Forward/reverse feed
• Multiple feed speeds
• X-, Y-, Z-axis adjustment
• Rollers are spring tensioned
• Heavy-duty gear reduction with hardened gears
• Universal positioning with handle locks

Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information.

Need help?

We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the G4176 comes with a 1-year warranty.

Made in an ISO 9001 factory

CSA certified
