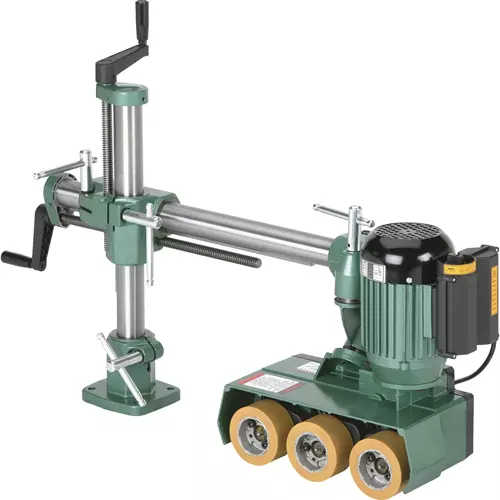

G4179 1/2 HP 4-Speed 3-Roller Power Feeder, Single-Phase

If you do any kind of production ripping or milling, you know what a big chore it can be feeding by hand, especially with longer and wider stock.

For those who want to increase production, upgrade, or add on another stock feeder, G4179 has plenty of power to handle your work.

The 1/2 HP motor powers three synthetic rubber rollers that measure 2" wide by 4" in diameter.

The G4179 has the option to feed a workpiece at four different feed rates: 9.5, 15, 25, and 38 feet per minute.

SPECIFICATIONS:

• Motor: 1/2 HP, 220V, single-phase, 2.9A
• Feed speeds: (4) 9.5, 15, 25, 38 FPM
• Rotation: Forward/reverse
• Maximum height of rollers: 7"
• Minimum workpiece length: 6"
• Horizontal travel: 16"
• Vertical travel: 9"
• Swing: 360°
• Rollers: (3) synthetic rubber, 2" wide x 4" dia.
• Roller suspension: 1"
• Approximate shipping weight: 107 lbs.

FEATURES:

• Forward/reverse feed
• Multiple feed speeds
• X-, Y-, Z-axis adjustment
• Rollers are spring-tensioned
• Heavy-duty gear reduction with hardened gears
• Universal positioning with handle locks

Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information.

Need help?

We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the G4179 comes with a 1-year warranty.

Made in an ISO 9001 factory

CSA certified
