Item# G0634XP Model# G0634XP

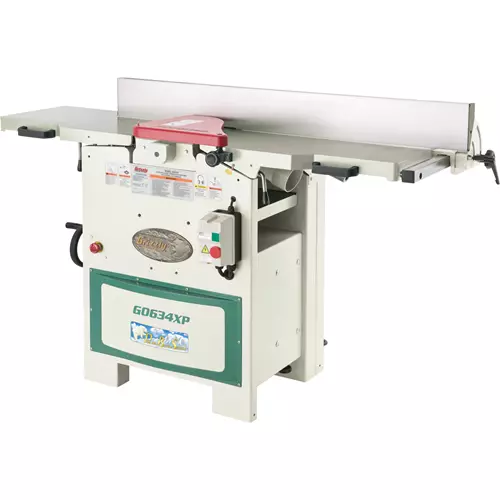

Grizzly G0634XP - 12" 5 HP Planer/Jointer with Helical Cutterhead-Polar Bear Series

$2,850.00
+$175.00  Freight
+$0.00  Oversize

G0634XP 12" 5 HP Planer / Jointer with Helical Cutterhead

A compact and convenient combination machine.

The G0634XP 12" Planer/Jointer with Helical Cutterhead combines a powerful 5 HP motor with a 4-row helical cutterhead. Producing straight-on cuts up to 12" wide, the inserts sit square to the axis of the cutterhead, with the cutting edges perpendicular to the workpiece. The 32 indexable carbide insert cutters can each be rotated three times to expose new, sharp cutting edges.

The power is transferred from the 5 HP motor to the cutterhead by the twin V-belt design. This ensures maximum power connection between the cutterhead and the feed drive.

The jointer has a depth of cut scale on the front. The fence can be positioned at any angle between 45° and 90° as indicated by the tilt scale.

The planer features cast-iron infeed and outfeed tables, two feed rollers, anti-kickback fingers and a thickness scale.

Conversion from the jointer to the planer is easy. Just remove the quick-release fence and flip up the jointer tables. The heavy-duty cast-iron tables are precision-ground to a mirror-like finish.

Like all Grizzly machines, the G0634XP comes with a 1-year warranty covering parts and assuring the unit is free from factory defects. (Consumables are not covered by the warranty.)

The G0634XP manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy to read manual makes it easier to assemble and maintain your Planer/Jointer.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories are available on-line and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

Main

  • Motor: 5 HP, 220V, single-phase, 25A
  • Cutterhead: Helical, 32 inserts
  • Cutterhead diameter: 3-1/8"
  • Cutterhead insert size: 15 x 15 x 2.5mm
  • Cutterhead speed: 5034 RPM

Fence

  • Fence: 5-3/4" x 51-1/2"
  • Fence stops: 45° and 90°

Jointer Capacities

  • Bevel jointing: 0° - 45°
  • Maximum width of cut: 12"
  • Maximum depth of cut: 1/8"
  • Cuts per minute: 20, 136
  • Jointer table size: 14" x 59-1/2"

Planer Capacities

  • Planer feed rate: 22 FPM
  • Maximum planer depth of cut: 1/8"
  • Maximum planer cutting height: 8"
  • Planer table size: 12-1/4" x 23-1/8"

Dimensions

  • Footprint: 26" x 19-1/2"
  • Overall size: 67-1/2" W x 24" D x 41-1/2" H
  • Approximate shipping weight: 704 lbs.

FEATURES:

  • Dual 4" ports for dust collection
  • Quick-release fence
  • Cast-iron infeed and outfeed tables
  • Flip-up tables and change lever simplify jointer/planer conversion
