Drill Presses
Item# G0491 Model# G0491

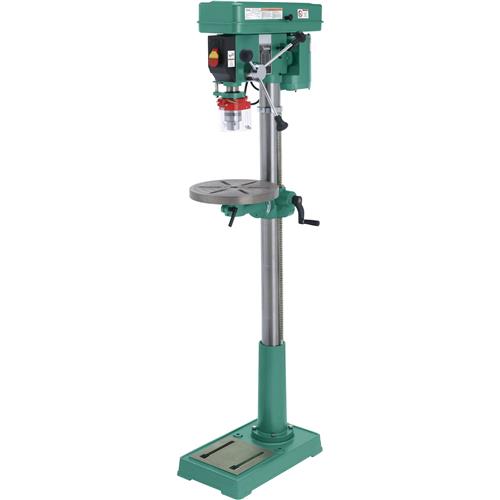

Grizzly G0491 - 13" Floor Model Drill Press

  • Motor: 1/2 HP, 110V, single-phase
  • Swing: 13"
  • Drill chuck: 5/8"
  • Spindle travel: 3 3/16"
  • Spindle taper: MT#2
  • Number of speeds: 16 (230, 332, 376, 470, 544, 569, 653, 760, 813, 840, 1458, 1610, 1716, 2196, 2375, 3270 RPM)
  • Max. distance spindle to table: 30 3/4"
  • Max. distance spindle to base: 48"
  • Collar size: 2.160"
  • Table size: 11 3/8"
  • Table swing: 360 deg.
  • Table tilts: 90 deg. left & right
  • Approximate shipping weight: 127 lbs.
View More Details

Product Resources

Specification Sheet - PDF Manual - PDF Parts List - PDF Buy Parts

Accessories

Recommended For You

Overview Comparisons Reviews Documents
Overview
  • Motor: 1/2 HP, 110V, single-phase
  • Swing: 13"
  • Drill chuck: 5/8"
  • Spindle travel: 3 3/16"
  • Spindle taper: MT#2
  • Number of speeds: 16 (230, 332, 376, 470, 544, 569, 653, 760, 813, 840, 1458, 1610, 1716, 2196, 2375, 3270 RPM)
  • Max. distance spindle to table: 30 3/4"
  • Max. distance spindle to base: 48"
  • Collar size: 2.160"
  • Table size: 11 3/8"
  • Table swing: 360 deg.
  • Table tilts: 90 deg. left & right
  • Approximate shipping weight: 127 lbs.
