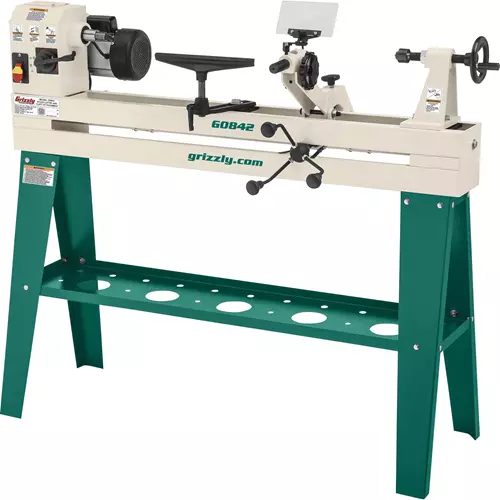

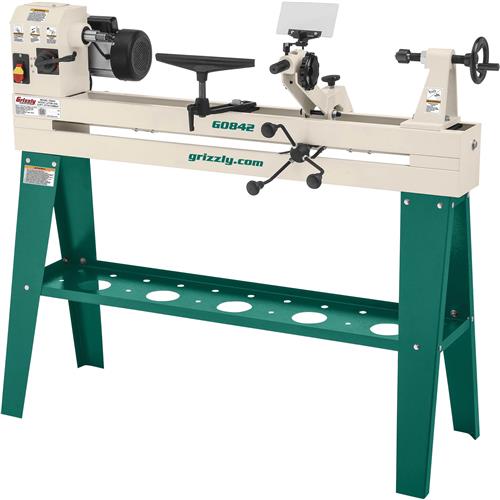

G0842 14" x 37" Wood Lathe with Copy Attachment

The ideal wood lathe for the hobby furniture maker.

The G0842 Wood Lathe with Copy Attachment allows you to easily reproduce stair spindles or chair and table legs up to 8" in diameter by 32" long using a template or master workpiece.

The copy attachment also drops out of the way for typical turning operations.

Powered by a 3/4 HP motor with ten spindle speeds, the G0842 allows for 37" of turning between centers between 600–2400 RPM.

Turn bowls or plates by mounting a workpiece to the 6" faceplate.

The adjustable 12" wide tool rest slides along the length of the lathe bed and easily locks in position where you want it.

SPECIFICATIONS:

• Motor: 3/4 HP, 110V, single-phase, 11A
• Swing over bed: 14"
• Swing over tool rest base: 12"
• Distance between centers: 37"
• Distance between centers with copy device: 32"
• Spindle speeds: 10, 600–2400 RPM
• Spindle taper: MT#2
• Spindle thread size: 1" x 8 TPI RH
• Tailstock taper: MT#2
• Tool rest width: 12"
• Tool rest post diameter: 1"
• Overall dimensions: 62" W x 24" D x 48" H
• Approximate shipping weight: 164 lb.

FEATURES:

• 37" distance between centers
• 14" swing over bed
• 9" swing over tool rest
• Copy device for workpieces up to 8" diameter and 32" long

INCLUDES:

• 12" Tool rest
• 6" Faceplate
• MT#2 live center
• MT#2 spur center
• Knock-out tool

Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information.

Need help?

We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the G0842 comes with a 1-year warranty.

Made in an ISO 9001 factory
