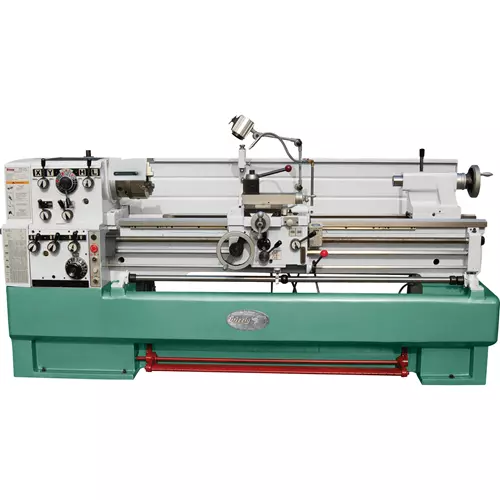

G0494 16" x 60" 3-Phase Metal Lathe

This 16" x 60" lathe should be the workhorse in your shop.

With the G0494 16" x 60" 3-Phase Metal Lathe, we've combined the mass, power and precision needed for turning tough to machine materials and extra heavy workpieces to exacting dimensions and finishes.

The spindle speeds up to 2000 RPM up for fine finishing or slow it down to a crawl with unparalleled power and rigidity.

Additional standard features include: auto carriage stop with indexable cams, interlocked apron controls, hex shaft feed rod, adjustable apron clutch, heavy-duty tailstock and more!

Take a close look at everything included with the package and you'll agree that this is one great value you won't want to miss out on.

Like all of the Grizzly lathes, the G0494 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects. (Consumables are not covered by the warranty.)

The G0494 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your lathe.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the lathe are available online and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

• Motor: 7-1/2 HP, 220V, 3-phase
• Swing over bed: 16-1/8"
• Swing over gap: 25-3/16"
• Swing over saddle: 11-1/4"
• Distance between centers: 59-5/8"
• Spindle nose: D1-6 camlock
• Spindle nose taper: MT#6
• Spindle bore: 2.0625"
• Max. tool bit size: 3/4"
• Tailstock barrel taper: MT#4
• Tailstock barrel travel: 4-13/16"
• Cross slide travel: 11-7/16"
• Compound travel: 5-1/16"
• Number of speeds: 12
• Speed range: 25-2000 RPM
• Range of threads (inches): 60 @ 2-112 TPI
• Range of threads (metric): 41 @ 0.4-14 mm
• Width of bed: 11-3/4"
• Overall dimensions: 107" W x 44" D x 54" H
• Approximate shipping weight: 5188 lbs.

FEATURES:

• Hardened and precision ground Meehanite bed casting
• Universal quick-change gearbox for inch and metric threads, plus modular and diametral pitches
• Hardened and precision ground headstock, quick change, and apron gears run in an oil bath
• Adjustable apron clutch

STANDARD EQUIPMENT:

• 10" 3-Jaw scroll chuck
• 12-1/2" 4-Jaw independent chuck
• 14" Faceplate
• 5-Pc. quick change tool post
• Thread chasing dial
• One-shot lube on apron
• Steady rest
• Follow rest
• 4-Position auto apron stop
• Coolant system
• Halogen worklight
• Full-length splash guard
• Dual inch/metric dials
• Jog and emergency stop button
• Foot brake
• #4–#6 Morse taper sleeve
• Centers, service tools, tool box, and leveling pads

Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.
