Item: G5962 | Model: G5962
1 Product Photos

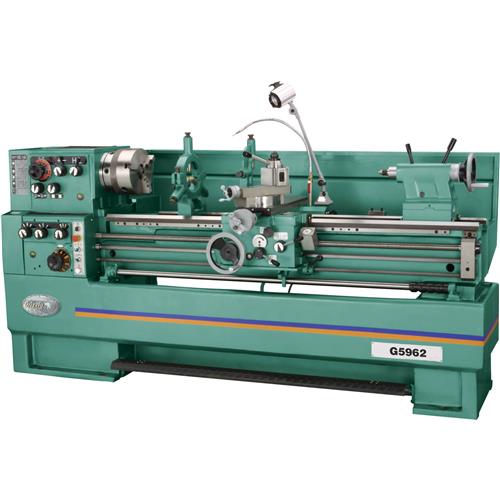

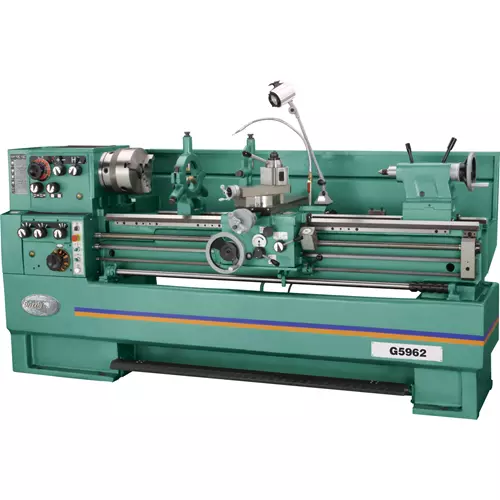

This lathe is loaded with industrial sized features. Combine a speed range of 24 - 1600 RPM with the large swing dimensions (11-1/4" clearance over the cross slide!) and you get great finishes at maximum diameters! Other important features include: a large 3-1/16" spindle bore, auto carriage stop with indexable cams, apron clutch, interlocked apron controls, hex shaft feed rod, 11-3/4" wide bed and no gear changes for inch or metric threading plus much, much more! Take a look at the standard equipment that comes with this machine and you'll agree, this is an incredible package for less than ten grand! We have not sacrificed one ounce of quality - this is one beautiful machine!
View More Details
Features:
- Precision hardened and ground V-bed
- Totally enclosed universal gearbox allows cutting of Metric, Whitworth, Module and Diametral threads can be cut by changing gears provided with machine
- Headstock gears run in an oil bath and are hardened and precision ground for smooth, quiet and vibration free operation
Specifications:
- Swing over bed: 18-1/4"
- Swing over gap: 24-3/4"
- Swing over cross slide: 11-1/4"
- Distance between centers: 60"
- Spindle size/type: D1-8 camlock
- Spindle nose taper: MT #8
- Spindle bore: 3-1/16"
- Tailstock barrel taper: MT #4
- Tailstock barrel travel: 4-3/4"
- Cross slide travel: 8-5/8"
- Top slide travel: 4-3/4"
- Number of speeds: 12
- Speed range: 24-1600 RPM
- Range of threads (inches) 40: 2-56 TPI
- Range of threads (metric) 60: 0.4-14 mm
- Width of bed: 11-3/4"
- Motor size (3 phase, 220V, 2 speed): 6 H.P.
- Dimensions: 51" H x 102" L x 38-1/2" D
- Shipping weight approximate: 5300 lbs.
Standard Equipment:
- 10" 3-jaw chuck
- 13" 4-jaw chuck
- 16-1/2" face plate
- 9" dog plate
- Steady rest
- Follow rest
- Coolant system
- Work light
- Full length splash guard
- 5-pc. quick change tool post system
- Taper attachment
- Universal threading gearbox
- 6 H.P. 2 speed motor
- MT #4 rolling center
- Centers, center sleeve, service tools, leveling pads, manual and toolbox
Accessories
Overview
This lathe is loaded with industrial sized features. Combine a speed range of 24 - 1600 RPM with the large swing dimensions (11-1/4" clearance over the cross slide!) and you get great finishes at maximum diameters! Other important features include: a large 3-1/16" spindle bore, auto carriage stop with indexable cams, apron clutch, interlocked apron controls, hex shaft feed rod, 11-3/4" wide bed and no gear changes for inch or metric threading plus much, much more! Take a look at the standard equipment that comes with this machine and you'll agree, this is an incredible package for less than ten grand! We have not sacrificed one ounce of quality - this is one beautiful machine!
Features:
- Precision hardened and ground V-bed
- Totally enclosed universal gearbox allows cutting of Metric, Whitworth, Module and Diametral threads can be cut by changing gears provided with machine
- Headstock gears run in an oil bath and are hardened and precision ground for smooth, quiet and vibration free operation
Specifications:
- Swing over bed: 18-1/4"
- Swing over gap: 24-3/4"
- Swing over cross slide: 11-1/4"
- Distance between centers: 60"
- Spindle size/type: D1-8 camlock
- Spindle nose taper: MT #8
- Spindle bore: 3-1/16"
- Tailstock barrel taper: MT #4
- Tailstock barrel travel: 4-3/4"
- Cross slide travel: 8-5/8"
- Top slide travel: 4-3/4"
- Number of speeds: 12
- Speed range: 24-1600 RPM
- Range of threads (inches) 40: 2-56 TPI
- Range of threads (metric) 60: 0.4-14 mm
- Width of bed: 11-3/4"
- Motor size (3 phase, 220V, 2 speed): 6 H.P.
- Dimensions: 51" H x 102" L x 38-1/2" D
- Shipping weight approximate: 5300 lbs.
Standard Equipment:
- 10" 3-jaw chuck
- 13" 4-jaw chuck
- 16-1/2" face plate
- 9" dog plate
- Steady rest
- Follow rest
- Coolant system
- Work light
- Full length splash guard
- 5-pc. quick change tool post system
- Taper attachment
- Universal threading gearbox
- 6 H.P. 2 speed motor
- MT #4 rolling center
- Centers, center sleeve, service tools, leveling pads, manual and toolbox
