Item: G0668 | Model: G0668
Image for G0668

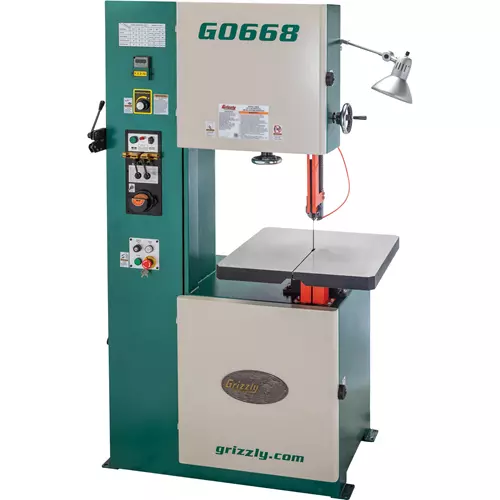

Grizzly G0668 - 20" 2 HP Vertical Metal-Cutting Bandsaw

No Reviews
$7,875.00
  • Motor: 2 HP
  • Max cutting width: 19-3/4 in.
  • Max cutting height: 12-5/8 in.
  • Table size: 21-5/8 in. x 23-1/2 in.
  • Wheel type: Fully-Balanced Cast Iron
  • Blade length: 154-1/2 - 159-3/4 in.
  • Footprint: 41-3/4 in. x 20-3/4 in.
  • Overall height: 77-1/8 in.
  • Shipping weight: 842 lbs.

Select Product Group

10" - 14" 18" - 20"

Hover to View 18" - 20" Models

Image for G0807
$5,350.00
In Stock
 Image for G0668
$7,875.00
In Stock
Shipping

Accessories

Image for T20566 157" x 1/2" x .025" x 10-14 TPI VP Bi-Metal Bandsaw Blade Item# T20566 $66.95 Add Image for T33997 159" x 3/8" x .025" x 10-14 TPI VP Bi-Metal Bandsaw Blade Item# T33997 $78.95 Add Image for T33998 159" x 1/2" x .025" x 10-14 TPI VP Bi-Metal Bandsaw Blade Item# T33998 $78.95 Add
California Proposition 65 Warning
Overview Specifications & Comparisons Reviews Q & A Specification Sheet Manual Parts List Buy Parts
Overview

G0668 20" 2 HP Vertical Metal-Cutting Bandsaw

An efficient machine for most of your metal-cutting needs.

Enjoy the benefits of a large capacity vertical bandsaw with the ability to make internal cuts in one self-contained machine.

The G0668 20" 2 HP Vertical Metal-Cutting Bandsaw has a built-in blade shear, welder, and grinder allows you to cut the blade, feed it through the work piece and weld it back together again.

The blade is also cooled during the cut by an on-board air compressor and air nozzle so there’s no messy liquid coolant system.

The variable blade speed control lets you dial in the optimum speed for any type of metal-cutting job and the balanced cast-iron wheels ensure extremely smooth operation.

For a full range of replacement blades for the G0668, shop here.

Like all Grizzly bandsaws, the G0668 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.

The G0668 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your metal-cutting bandsaw.

The Grizzly Customer Service and Technical Support Teams are U.S.-based. Parts and accessories for the bandsaw may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

  • Main motor: 2 HP, 220V, 3-phase, 6.6A
  • Grinder motor: 1/8 HP, 220V, single-phase, 0.6A
  • Throat (max. width left of blade): 19-3/4"
  • Maximum cutting height: 12-5/8"
  • Blade speed: Variable, 83–2100 FPM
  • Blade length: 154-1/2"–159-3/4"
  • Blade width range: 1/8"–3/4"
  • Included blade size: 157" x 3/8" x 10 TPI
  • Table size: 23-1/2" x 21-5/8"
  • Table tilt: 45° right, 15° left
  • Floor to table height: 36-5/8"
  • Footprint: 41-3/4" x 20-3/4"
  • Overall dimensions: 47-1/4" W x 29-1/2" D x 77-1/8" H
  • Approximate shipping weight: 842 lbs.

FEATURES:

  • Blade welding station with clamp for joining blade ends
  • Built-in blade welder and grinder
  • Annealing station
  • Rack-and-pinion upper guide adjustment
  • Digital speed display
  • Compressed air coolant system
  • Precision ground cast-iron table
  • Fully-balanced cast-iron wheels
  • Work light
