Planers
Item# G0454 Model# G0454

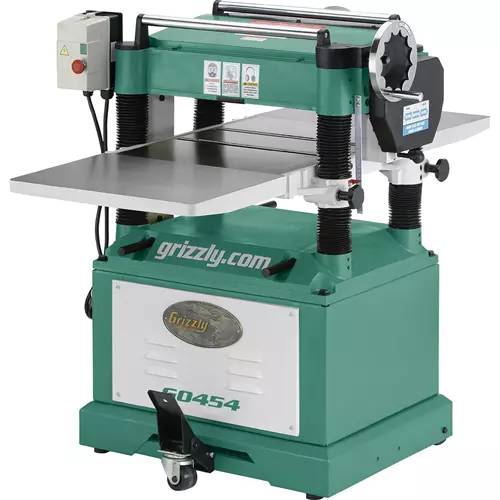

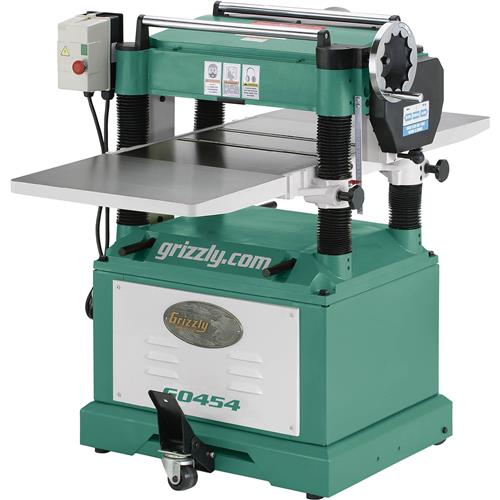

Grizzly G0454 - 20" 5 HP Planer

20" 5 HP Planer-img-0
20" 5 HP Planer-img-1
20" 5 HP Planer-img-2
20" 5 HP Planer-img-3
20" 5 HP Planer-img-4
$1,995.00
+$249.00 Freight
+$0.00  Oversize
  • Motor: 5 HP
  • Max cutting width: 20"
  • Max cutting height: 8"
  • Cutter Head Type: 4 blade
  • Cutter Head Diameter: 3-1/8"
  • Min Stock Length: 8"
  • Feed Rate(s): 16, 20 FPM
  • Table size: 20" x 25-3/4"
  • Shipping weight: 920 lbs.

Size

12-1/2" 13" 15" 20" 24" 25"

Hover to View Details

product image for G1033
$1,950.00
Backordered
 product image for G0454
$1,995.00
Backordered
 product image for G1033Z
$2,195.00
In Stock
 product image for G0454Z
$2,795.00
Check by Zip
 product image for G1033X
$2,995.00
Check by Zip
 product image for G0544
$5,995.00
In Stock
 product image for G9740Z
$8,995.00
In Stock
Add to Cart
Backordered - More on the way Order today to secure your spot in line. Your credit card will not be charged until we ship your product and you may cancel at any time.
Submit

Product Resources

Videos Specification Sheet - PDF Manual - PDF Parts List - PDF Buy Parts

Accessories

Self-Set System for G1033, G0454, G0515 4 Knife 20" Planers Self-Set System for G1033, G0454, G0515 4 Knife 20" Planers Item# T21155 $509.95 20" HSS Replacement Knives for Dispoz-A-Blade® G5855 H2254, H2255, H4278, H5139, H9156, T21155, 4 pc. 20" HSS Replacement Knives for Dispoz-A-Blade® G5855 H2254, H2255, H4278, H5139, H9156, T21155, 4 pc. Item# H2262 $99.95 20" Cobalt Replacement Knives for Dispoz-A-Blade® H2254-55, H4278, H5139, H9156, T21155, 4 pc. 20" Cobalt Replacement Knives for Dispoz-A-Blade® H2254-55, H4278, H5139, H9156, T21155, 4 pc. Item# H5141 $154.95 20" x 1" x 1/8" HSS Planer Blades, Set of 4 20" x 1" x 1/8" HSS Planer Blades, Set of 4 Item# G6702 $115.00 Planer / Jointer Blade Hone Planer / Jointer Blade Hone Item# D1123 $13.25

Recommended For You

Overview Videos Comparisons Reviews Documents
Videos
Overview

Put this 20" Planer in your shop without breaking the bank. Solid cast iron and steel construction and large planing capacity make this planer a true heavyweight. However, with a foot-operated caster system, you won't need to manhandle this planer around your shop. You'll also appreciate the 55-1/2" long precision-ground table, 5 HP motor and the two-speed gear box for maximum versatility.

CSA certified meeting CSA & UL standards!

SPECIFICATIONS:

  • Motor: 5 HP, 240V, single-phase, 19A
  • Maximum stock width: 20"
  • Maximum stock thickness: 8"
  • Minimum stock thickness: 3/16"
  • Minimum stock length: 8"
  • Maximum cutting depth: 1/8"
  • Cutterhead type: 4-knife
  • Knife size & type: 20" x 1" x 1/8", HSS
  • Cutterhead speed: 4800 RPM
  • Feed rate: 16 FPM & 20 FPM
  • Table size with extensions: 20" x 55-1/2"
  • Dust port size: 5"
  • Overall dimensions: 55-1/2" L x 39-1/2" W x 45-7/8" H
  • Approximate shipping weight: 920 lbs.

FEATURES:

  • Built-in mobile base
  • Precision-ground cast-iron table and extension wings
  • Board return rollers
  • Rubber-coated outfeed roller
  • Adjustable bed rollers
  • Magnetic switch with thermal overload protection
  • Four-column support with table locks
  • Two-speed feed rate
  • Certified to CSA & UL standards
