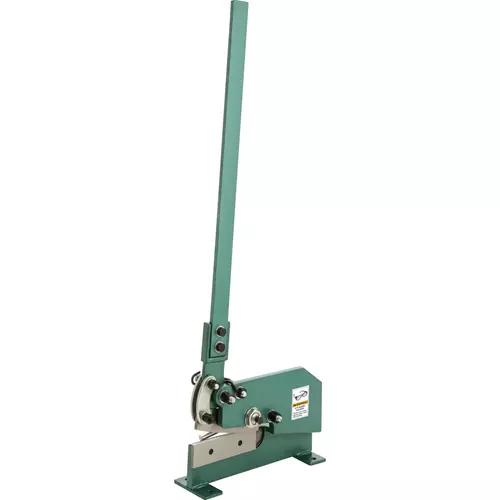

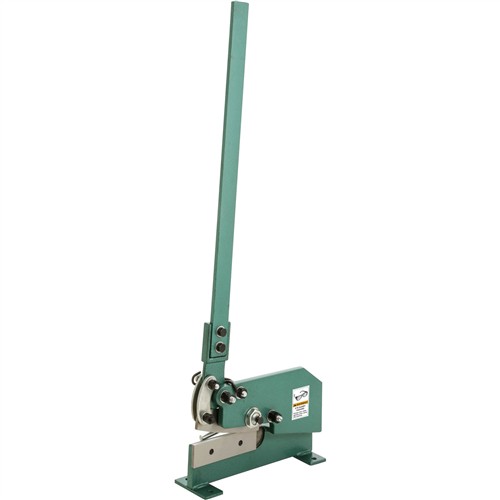

Grizzly T27429 5" Plate Shear

These bench-mounted T27429 5" Plate Shears are designed to cut flat (sheet/plate) stock and round (bar) stock of ferrous and non-ferrous metals, and even plastics.

They are simple to use and excel at making quick, clean cuts for rough cutouts.

This 5" plate shear features ground-and-hardened replaceable blades, an extra-long leverage-maximizing handle, and a spring-assisted material hold-down.

The T27429 instruction sheet was written by our U.S.-based Documentation Department is packed with useful information.

Made in an ISO 9001 factory

SPECIFICATIONS:

• Blade length: 4-7/8"
• Maximum length of cut: 4-1/2"
• Mounting bolt hole diameter: 3/8"
• Maximum thickness up to 2-3/4" wide: 1/4"
• Maximum thickness at full length: 16-Gauge
• Maximum round stock diameter: 3/8"
• Overall dimensions: 4-1/2" W x 10" D x 37" H
• Approximate shipping weight: 25 lb.

Need help?

We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the T27429 comes with a 1-year warranty.
