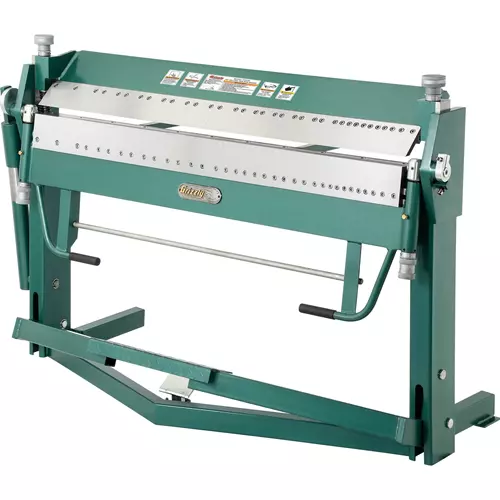

T28325 59" Pan and Box Brake

Expand your fabrication capabilities and achieve precise and repeatable metal bends.

Boasting a 59-inch bending capacity and a diverse range of finger sizes, the T28325 Pan and Box Brake delivers exceptional versatility.

Removable upper and lower fingers enable precision box bends, along with transverse and down-flanged shapes, expanding your fabrication potential.

From 1-inch box flanges to full-width pans, this brake offers the necessary capacity and flexibility for accurate results.

The integrated work stop, featuring a 135-degree scale, guarantees repeatable production, while precision-ground steel clamping fingers create a 5/8-inch minimum reverse bend.

The T28325 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information.

SPECIFICATIONS:

• Maximum working width: 59"
• Maximum thickness at half width (mild steel): 16-gauge
• Maximum thickness at full width (mild steel): 18-gauge
• Brake range: 0–135°
• Minimum reverse bend: 5/8"
• Maximum pan depth: 2"
• Fingers: (2) 1-1/2", (4) 2", (5) 3", (6) 4", (1) 9"
• Overall dimensions: 71-1/2"L x 40-1/2"W x 46"H
• Approximate shipping weight: 1080 lbs.

FEATURES:

• 135° maximum bending angle
• 2" Maximum pan/box height
• 5/8" Minimum reverse bend capability
• 18-Gauge full width mild steel capacity
• Removable fingers for box bends
• Removable dies for clearance

Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.

Need help?

We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the T28325 comes with a 1-year warranty.

Made in an ISO 9001 factory
