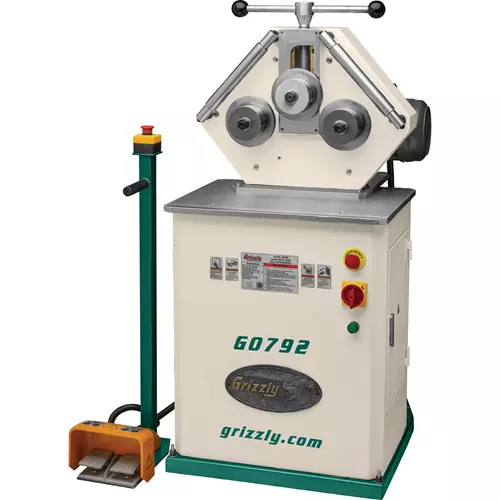

G0792 Heavy-Duty Ring Roll Pipe Bender
A pipe bender is a great addition to any metalworker’s shop.
The G0792 Ring Roll Pipe Bender can be used to create arcs, circles, and spirals.
This is achieved by feeding the pipe back and forth through the machine with incrementally greater force exerted by the upper roller.
The G0792 is capable of bending with the headstock in either a vertical or horizontal position.
Typically, the horizontal position is only needed when bending extra-long workpieces which could create a space constraint in the vertical position.
Perfect for manufacturing marine and spiral staircase handrails, curved aluminum window frames, coils of tubing, ornamental ironwork, and much more.
With a solid 2 HP motor, and upper and lower roll diameters of 3-13/16", this powerhouse can handle up to 1-1/8" nominal pipe, 1-9/16" x 1-9/16" x 1/16" square mild steel, 2" x 1" x 1/8" C-channel mild steel, and 5/8" diameter solid bar mild steel.
An external pedestal with forward/reverse foot controls and dual emergency stops was designed for ease-of-use and safety in mind.
Rolling a compound arc requires accessory rollers that do not come with the G0792. Shop here for additional round material dies.
Like all Grizzly machines, the G0792 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)
The G0792 manual was written by our U.S. based Technical Documentation Department and is packed with useful information.
The complete and easy-to-read manual provides full instructions on how to assemble and maintain your bender.
The Grizzly Customer Service and Technical Support Teams are U.S. based.
Parts and accessories for the roll pipe bender may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
SPECIFICATIONS:
- Motor: 2 HP, 220V, single-phase, 8.6A
- Number of driven rolls: 2
- Upper roll diameter: 3-13/16"
- Lower roll diameter: 3-13/16"
- Shaft diameter: 1-3/16"
- Vertical travel of upper shaft: 3-1/2"
- Distance between lower shaft centers: 10-3/4"
- Capacities:
- Square mild steel: 1-9/16" x 1-9/16" x 1/16"
- C-Channel mild steel: 2" x 1" x 1/8"
- Minimum outer radius: 11-3/4"
- Maximum bending speed: 14.8 FPM
- Control method: electronic foot pedal
- Overall dimensions: 29" W x 40" D x 51" H
- Approximate shipping weight: 626 lb.
