Item: H8283 | Model: H8283
Image for H8283

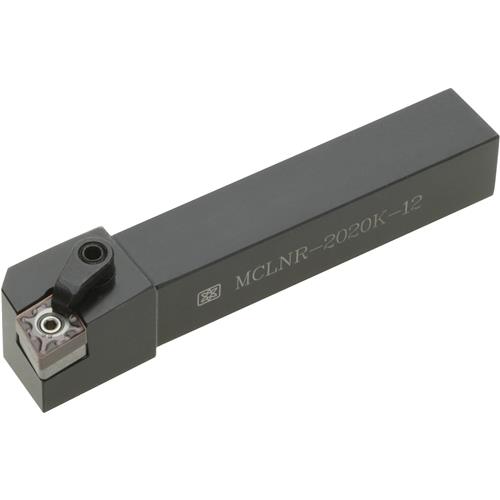

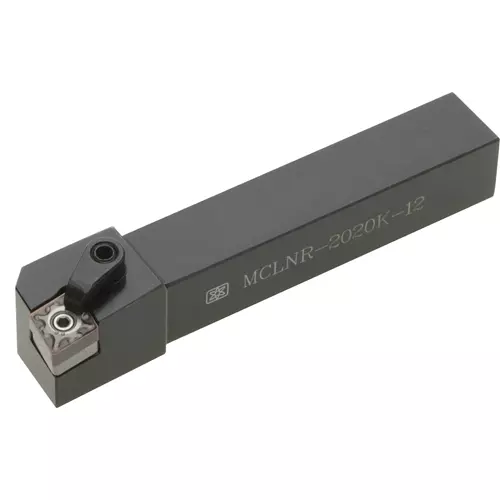

Grizzly H8283 - Lathe Tool Holder - 20mm Sq., Right-Hand 80 Degrees

5.0 (1)
5
1
$33.97
MSRP: $73.95
You Save: $39.98 (54%)

These tool holders are designed for use with 80° (rhombic) inserts and can be used to face, turn and contour. Supplied with a forged clamp, double acting clamp screw, wrenches, carbide shim and shim screw. Inserts not included.

  • Shank: 20x20mm
  • OA Length: 4-15/16"
  • Hand: RH
  • Cutting Edge Angle: 80 degrees
  • Uses ISO inserts: CNMG120408
  • Uses ANSI inserts: CNMG432
  • Compatible Inserts: H8326 and H8328
    • View More Details
    Shipping

    Accessories

    Image for T34418 CNMG Carbide Inserts for Stainless Steel, 10-Pk Item# T34418 $45.95 Add Image for T34417 CNMG Carbide Inserts for Cast-Iron, 10-Pk Item# T34417 $45.95 Add Image for H8328 Carbide Inserts CNMG for Cast-Iron, pk. of 10 Item# H8328 $116.98 Add Image for SB1365 Way Oil for Lathes Item# SB1365 $20.95 Add
    California Proposition 65 Warning
    Overview Reviews Q & A
    Overview

    These tool holders are designed for use with 80° (rhombic) inserts and can be used to face, turn and contour. Supplied with a forged clamp, double acting clamp screw, wrenches, carbide shim and shim screw. Inserts not included.

  • Shank: 20x20mm
  • OA Length: 4-15/16"
  • Hand: RH
  • Cutting Edge Angle: 80 degrees
  • Uses ISO inserts: CNMG120408
  • Uses ANSI inserts: CNMG432
  • Compatible Inserts: H8326 and H8328
    • Specifications & Comparisons
